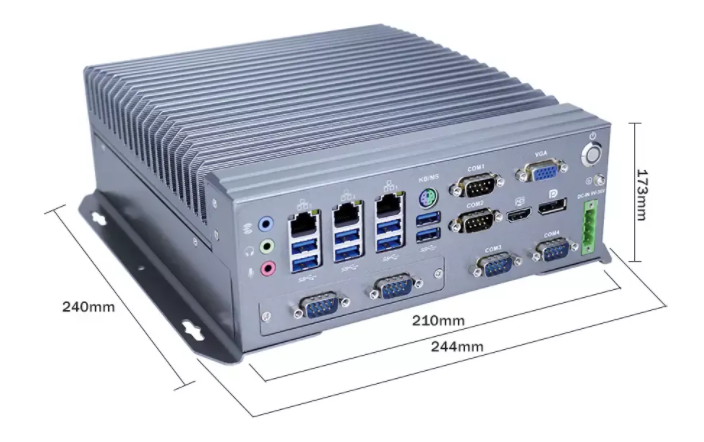

ATI-BOX-4065 Industrial fanless computer

ATI-BOX-4065 Industrial fanless Computer

ATI-BOX-4065 Industrial fanless computer

◆ High quality pure aluminum ,Embedded Industrial fanless computer ；

◆ 2*DDR4 1866/2133 RAM Slot, Max. support 32GB RAM；

◆ Onboard Intel Q170 chipset；

◆ Support 6*COM Optional (COM1,2 Support RS232/422/485 Optional);

◆ Support DC 9 ～ 36V wide voltage, power positive and negative reverse protection

◆ Support Desktop、Embedded、Wall Mount etc.

ATI-BOX-4065
System Parameter
Model ATI-BOX-4065  Industrial Fanless computer
Processor Intel Core i3 6100 (Dual core four threads，3.7GHz);
Intel Core i5 6500 (Quad core four threads，3.2GHz，Max turbo 3.6GHz)
Intel Core i7 6700 (Quad core eight threads，3.4GHz，Max turbo 4.0GHz)
Memory Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32G
BIOS AMI EFI BIOS
Display Chip Integrated Intel HD Graphics 530
Display port 1*VGA port，1*HDMI port,1*DP（Support synchronous and asynchronous three display）
 I/O 8*USB3.0，3*Intel 1000M LAN，1*Power Switch，1*MIC，2*Speaker，1*VGA，1*HDMI，1*DP, 1*Keyboard or Mouse port
6*COM（COM1、COM2 RS232/422/485 Optional），1*DC power supply phoenix connector
Expansion Slot Support 1*MINI PCIE slot（WIFI/3G/4G Optional)
Support 1*MINI PCIE slot（MSATA/3G/4G Optional）
Optional Ports: 16Bit GPIO、4*USB2.0 （Standard version doesn’t include these ports）
Network 2*Intel i211-AT，1*Intel i219-LM 1000M LAN（Support Vpro Technology）
Storage port Support 1*MSATA slot，2*2.5” SATA HDD（Support RAID0/1）
Power Supply DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection
Certificates CE、 CCC、 FCC Class A、 ROHS

Structure Parameter
Color Titanium gray (Color can be customized)
Material High quality aluminum alloy+ sheet metal structure
Size 210 * 240 * 83.5 mm【not include wall bracket】
Weight 4 kg【not include wall bracket】
Environmental Parameter
Work Temp 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow
Work Humidity 5% ～ 95%  Non-condensing
