ATI-BOX-4065B Fanless Industrial PC
◆ All aluminum alloy structure,Fanless Industrial PC；
◆ Support 1*PCIE X16 + 1*PCI expansion Slot；
◆ 2*DDR4 1866/2133 RAM Slot, Max. support 32GB RAM；
◆ Support 6*COM（COM1, COM2 RS232/422/485 Optional )；
◆ Onboard Intel Q170 chipset;
◆ Support Desktop、Embedded、Wall Mount etc.
 |  |  |
| System Parameter | |
| Model | ATI-BOX-4065B Fanless Industrial PC |
| Processor | Intel Core i3 6100T (Dual core four threads，3.2GHz); |
| Intel Core i5 6500T (Quad core four threads，2.5GHz，Max turbo 3.1GHz) | |
| Intel Core i7 6700T (Quad core eighr threads，2.8GHz，Max turbo 3.6GHz) | |
| CPU Structure | Skylake-U / KabyLake-U |
| Memory | Support 2*DDR4 1866/2133 SODIMM RAM Slot，Max. Support 32G |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 530 |
| Display port | 1*VGA，1*HDMI,1*DP |
| I/O | 8*USB3.0，3*Intel 1000M LAN，1*Power Switch，1*MIC，2*Speaker，1*VGA，1*HDMI，1*DP, 1*Keyboard or Mouse port |
| 6*COM（COM1、COM2 RS232/422/485 Optional），1*DC power supply phoenix connector | |
| Expansion Slot | 1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot，Max length of expansion card: 210 mm |
| Network | 2*Intel i211-AT，1*Intel i219-LM 1000M LAN（Support Vpro Technology） |
| Storage port | Support 1*MSATA slot，2*2.5” SATA HDD（Support RAID0/1） |
| Power Supply | DC 9～36V wide voltage Input, Support positive pole and negative electrode connect reversely protection |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |

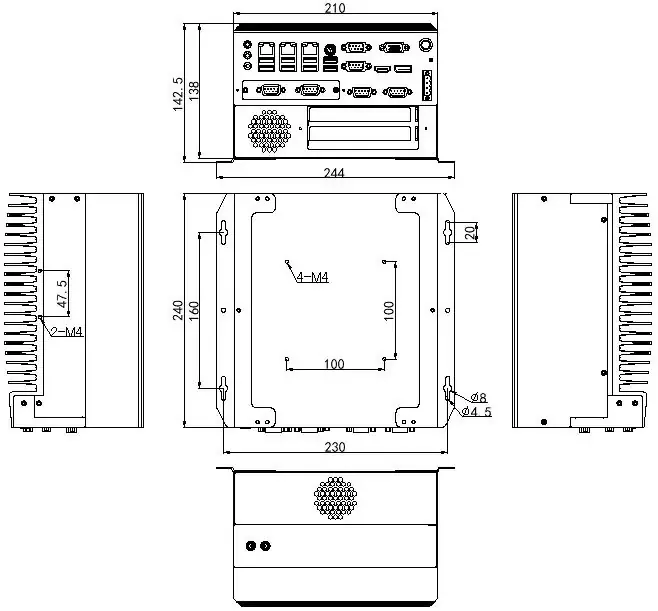

| Size | 210 * 240 * 173 mm【not include wall bracket】 |
| Weight | 4.7 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
