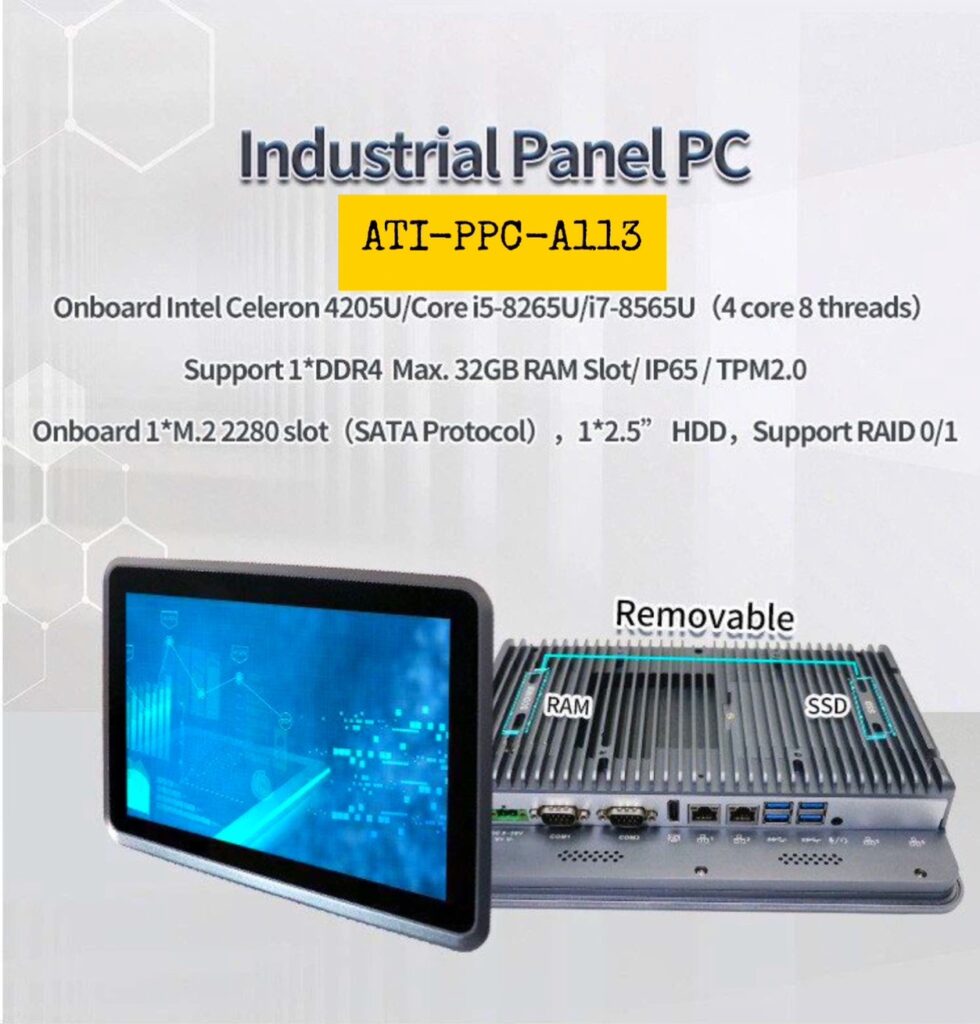

ATI-PPC-A113 : Industrial Panel PC
10.1 Inch Intel I5-8265U I7-8565U Industrial Panel PC
Features:
◇ Die cast aluminum alloy moulding, fanless design;
◇ Onboard Intel Celeron 4205U,i5-8265U, i7-8565U Processor;
◇ Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption;
◇ Support 2*RS232 or RS422 or RS485 COM Optional, 6*COM Optional;
◇ Support 2*Intel LAN, 4*LAN Optional;
◇ IP65 full flat front panel;
◇ Applied OS:
|
Specification |
|
|
Model |
ATI-PPC-A113 |
|
Color |
Titanium gray (Color can be customized) |
|
Material |
Aluminum alloy chassis |
|
Processor |
Onboard Intel Celeron 4205U/Celeron J6412U (Dual core / Quad Core CPU) |
|
Onboard Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache) |
|
|
Onboard Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache) |
|
|
RAM |
Support 1*DDR4 2133/2400 SODIMM Memory Slot, Max. Support 32GB |
|
BIOS |
AMI EFI BIOS |
|
Display Chip |
Integrated Intel UHD Graphics |
|
Display Port |
1*HDMI, 1*LVDS (Support synchronous and asynchronous dual display) |
|
Storage |
Onboard 1*M.2 2280 slot (SATA Protocol), 1*2.5″ HDD, Support RAID 0/1 |
|
Expansion Slot |
Support 1*Mini PCIE slot (WIFI Optional) |
|
I/O |
1*HDMI, 2*COM (COM1, COM2 RS232/RS422/RS485 Optional, 6*COM Optional), 1*Power Switch |
|
1*2Pin power supply phoenix connector, 1*Audio (Support Mic and Speaker at the same time), 4*USB3.0, 2*Intel 1000M LAN (4*LAN Optional) |
|
|
Other Function |
TPM2.0 security encryption, Auto power on when there is electricity, Timing boot、Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn’t set these function) |
|
Expansion Function |
GPIO (8 Input 8 Output), 2*LAN, 4*COM, 2*USB2.0 (Standard version doesn’t include these ports) |
|
LCD |
Size: 10.1 inch TFT-LCD; Brightness: 350 cd/m2; Viewing Angle: Full Angle |
|
Ratio: 16:9;Resolution: 1280 * 800 |
|
|
Touch Screen |
Industrial grade multi-touch capacitive touch screen, Life Time: more than 50000 Thousand Times |
|
Speaker |
Two 8-ohm 2-watt speaker |
|
Input Voltage |
DC 9V ～ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
