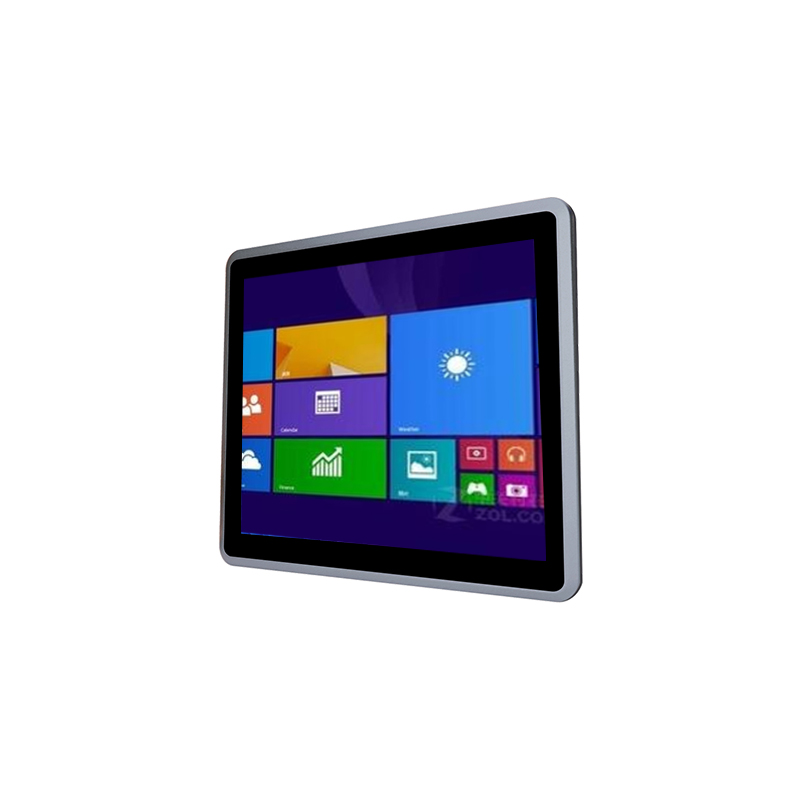

ATI-PPC-A500 : Industrial Panel PC
15 Inch Resistive Touch Panel Pc
Features:
◇ Die cast aluminum alloy moluding,fanless design;
◇ Onboard Intel Whiskey Lake U series processor;
◇Support 9V ～ 36V wide voltage Input, and TPM2.0 security encryption;
◇ Support TPM2.0,Windows 11;
◇ Support 2*RS232/422/485 COM,6*COM Optional;
◇ Support 2*Intel lans,4*Intel lans Optional;
◇ IP65 full flat front panel;
◇ Applied OS:
|
Model |
ATI-PPC-A500 |
|
Color |
Titanium gray (Color can be customized) |
|
Material |
Aluminum alloy chassis |
|
Processor |
Onboard Intel Celeron 4205U/Celeron J6412U (Dual core Quad Core); |
|
Onboard Intel Core i5-8265U(Quad core eight threads,1.6Ghz,Max turbo 3.9Ghz,6MB Cache); |
|
|
Onboard Intel Core i7-8565U(Quad core eight threads,1.8Ghz,Max turbo 4.6Ghz,8MB Cache); |
|
|
RAM |
Support 1*DDR4 2133/2400 SODIMM Memory Slot,Max. Support 32GB |
|
BIOS |
AMI EFI BIOS |
|
Display Chip |
Integrated Intel UHD Graphics |
|
Display Port |
1*HDMI,1*LVDS(Support synchronous and asynchronous dual display) |
|
Storage |
Onboard 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD,Support RAID 0/1 |
|
Expansion Slot |
Support 1*Mini PCIE slot (WIFI Optional) |
|
I/O |
1*HDMI,2*COM(COM1&COM2 RS232/RS422/RS485 Optional,6*COM Optional),1*Power Switch |
|
1*2Pin power supply phoenix connector,1*Audio (Support Mic and Speaker at the same time),4*USB3.0,2*Intel 1000M LAN（4*LAN Optional） |
|
|
Other Function |
TPM2.0 security encryption、Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
|
Expansion Function |
GPIO（8 Input 8 Output）、2*LAN、4*COM、2*USB2.0 （Standard version doesn’t include these ports） |
|
LCD |
Size：15 inch TFT-LCD;Brightness:350 cd/m2;Viewing Angle:Full Angle |
|
Ratio:4:3;Resolution:1024 * 768; |
|
|
Touch Screen |
Industrial grade multi-touch resistance touch screen,Life Time: more than 50000 Thousand Times; |
|
Speaker |
Two 8-ohm 2-watt speaker |
|
Input Voltage |
DC 9V ～ 36V wide voltage Input，support positive pole and negative electrode connect reversely protection; |
|
Dimension |
366 * 290*60 mm |
|
Weight |
3.9 kg |
|
Embedded Installation |
355 * 279 mm |
