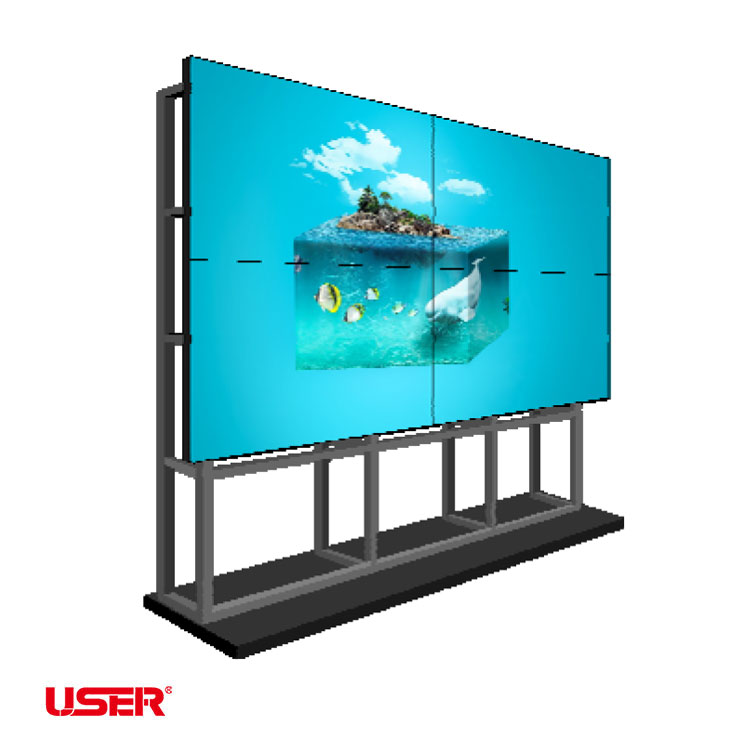

LCD VIDEO WALL 1.8MM BEZEL SERIES (46″, 49”,55” DID LCD Panel)
High definition picture perfect quality, Safety glass protects the LCD for public use, High-fidelity quanlity sound, Easy 178 degrees viewing angles
Specifications
| Model | 46”、49”、55” DID LCD Panel | |
| Bezel | 1.8mm | |
| LCD Panel | Max Resolution Support | 1920×1080(H×V) |
| Pixel Pitch | 0.53025（H）×0.53025 (V) | |
| Brightness (nits) | 500 (cd/ m ) | |
| Contrast | 4000:1 | |
| Response Time | 8ms | |
| Color | 16.7M | |
| Visual Angle (H/V) | 178°(H) / 178°(V) | |
| Image | Contrast | 16 : 9 |
| Picture quality compensation | LTI、CTI | |
| Motion compensation | AUTO MOVE | |
| Filter | 3D comb filtering，digital noise reduction | |
| Video format | PAL、NTSC | |
| Video Wall Controller
(Built-in each Screen) |
Computer centralized control interface | RS232 |
| Structure | Border dimension | 1.8mm |
| Net weight | 25kg | |
| Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field interference | |
| Installation way | Wall mount，floor standing mount，hanging mount | |
Configuration options
| Option 1 | Full HD 2K | ||
| Signal source | Composite Video Input/(AV) | CVBS(BNC) ×1 | |
| Digital signal input | HDMI×1； 1920×1080@60Hz backward compatible | ||
| Computer signal input | VGA(DB-15) ×1；1920×1080@60Hz backward compatible | ||
| Digital signal input | DVI(DVI-I)×1；1080P(1920×1080) backward compatible | ||
| Composite Video Input/(AV) | CVBS(BNC)x1 | ||
| RS232 | 3 | ||
| USB | 1 | ||
| Option 2 | DP Looping 4K | ||
| Signal source | Display Port(DP) | 3840×2160@30Hz、3840×2160@20Hz、3840×2160@25Hz | |
| HDMI | 480p、576p、720p、1080i、1080p、2160p | ||
| DVI | 480p、576p、720p、1080i、1080p | ||
| Input port | Display Port | DP×1 | |
| PC-RGB | 15 D-SUB×1 | ||
| HDMI | HDMI×1 | ||
| DVI | DVI×1 | ||
| RS232 | 1 | ||
| Output | RS232 | 1 | |
| Display Port | DP×1 | ||
