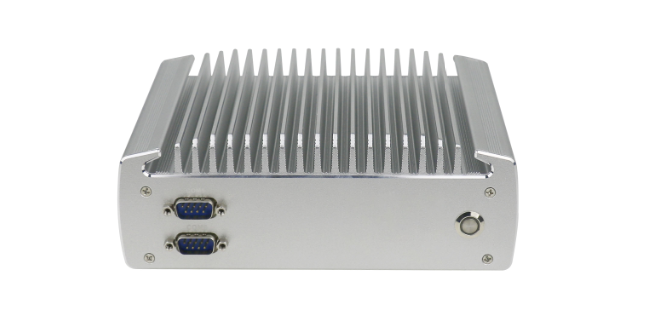

IBOX-101 Plus Fanless System
◆ Aluminum alloy + sheet metal structure, Fanless Industrial Computer；
◆ Support Intel Celeron J1900 quad core processor；
◆ Support 2-6*USB, 2*Intel 1000 M Lan；
◆ Support 1*MSATA Slot，1*2.5”HDD；
◆ Support 1*Mini PCIE Slot；
◆ Support 6*COM(COM1、COM2 RS232/485 Optional)；
◆ Support Desktop、Embedded、Wall Mount etc.
 |  |
| System Parameter | |
| Model | IBOX 101 PLUS Fanless System |
| Processor | Onboard Intel Celeron J1900（Quad core quad threading，1.99GHz，TDP: 10W） |
| Chipset | J1900（Single Chip） |
| Memory | Support 1*DDR3L 1333/1600MHz SODIMM RAM slot，Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*Built-in LVDS （Support synchronous and asynchronous dual display） |
| Storage | Support 1*MSATA，1*2.5”HDD |
| Expansion | Support 1*MINI PCIE Slot【Support MSATA】Support 1*Mini PCIE Slot【WIFI/3G/4G Optional】Embedded SIM Slot |

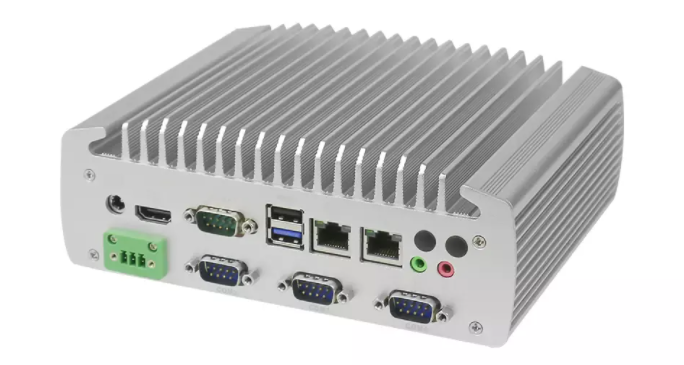

| I/O | 2*COM，1*Power Switch, 2*1000M LAN，1*HDMI，1*DC 12V Input，1*Mic，1*Line Out1*USB3.0，1*USB2.0，4*COM（COM1、COM2 RS232/485 Optional），1*3PIN Phoenix connector |
| Network | 2* Intel i211-AT 1000M LAN |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Silver（Color can be customized） |
| Material | All alloy+ Sheet metal structure |
| Dimension | 186 * 150 * 66 mm 【Not include the brackets】 |
| Weight | 1.6kg 【Not include the brackets】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
