IBOX-605 Industrial Computer
IBOX-605 Industrial Computer
◆ Fanless Design, Embedded Industrial computer；
◆ Onboard Intel Core i3 8100T,i5 8500T,i7 8700T；
◆ Support 2*DDR4 2133/2400 , Max. Support 32GB RAM；
◆ Support 1*M.2 2280,Optional 2*2.5” hard disk；
◆ Optional 6*COM（1*COM optional RS232/RS485/ RS422）；
◆ Support 2*HDMI；
◆ Support Desktop、Embedded、Wall Mount etc.
 |  |  |
| System Parameter | |
| Model | IBOX-605 Fanless PC |
| Processor | Onboard Intel Core i3 8100T (quad core, 4 threads，3.1 GHz)Onboard Intel l Core i5 8500T (6 core ,6 threads，2.1GHz,Max 3.5 GHz)Onboard Intel l Core i7 8700T (6 core ,12 threads，2.4 GHz,Max:4.0 GHz) |
| Chip | Intel H310 |
| Memory | Support 2*DDR4 2133/2400 SODIMM memory slot，Max :32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 630 |
| Display port | 1*VGA port，2*HDMI port |
| Front I/O | 6*USB2.0 ，2*COM，1* Metal switch |
| Rear I/O | 2*USB3.0，2*Intel 1000M LAN ，1*VGA，2*HDMI，1*audio interface，1*Mic,1*Line out4*COM（COM 2 Optional RS232/RS422/485），1*DC |
| Expansion Slot | Support 1*M.2 2280 slot（Compatible PCIE and SATA）；Support 1*MINI PCIE slot（WIFI/BT）；Expansion Port：GPIO（4 Input*4 Output） |
| Network | 2*RTL8111E 10/100/1000M Lan |
| Storage port | Support 1* M.2 2280 slot，1*2.5” HDD （Optional 2*2.5inch hard disk） |
| Power Supply | Support DC 12 -19 V input , 【DC 9 ～ 36V wide voltage Optional】 |
| Other functions | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality all aluminum，surface anodic oxidation |

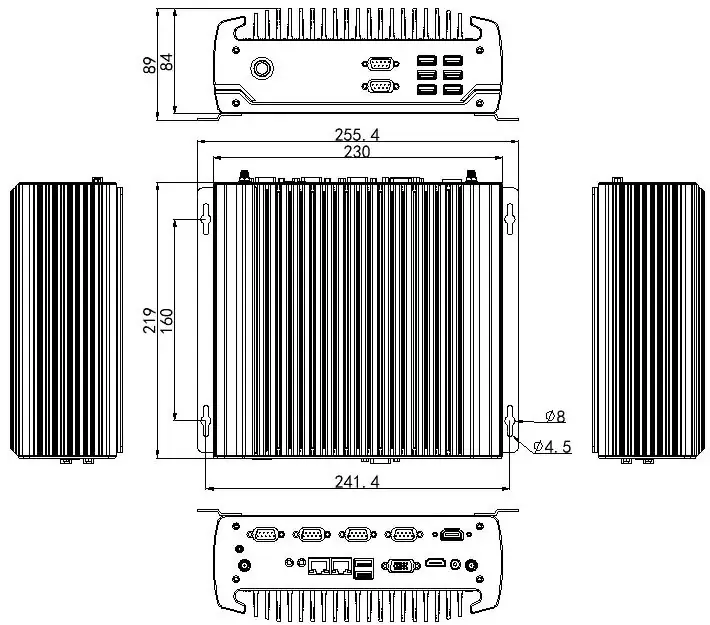

| Size | 230 * 219 * 84mm【not include wall bracket】 |
| Weight | 4.0 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
