Mport3101-W : 1-port RS232/RS485/RS422 Serial to Wi-Fi/Ethernet Server
- 1-port RS232/RS485/RS422 Serial to Wi-Fi/Ethernet Server
Features and Benefits
- Support RS-232/485/422 to Wi-Fi/Ethernet data transmission, serial rate up to 230400bps
- Support 802.11 b/g/n standard
- Support wireless operation AP/Client/AP+Client mode
- Support IP-MAC binding, static routing, PPPoE, DHCP, static IP and AUTO-IP functions
- Support WAN/LAN mode switching
Product Description

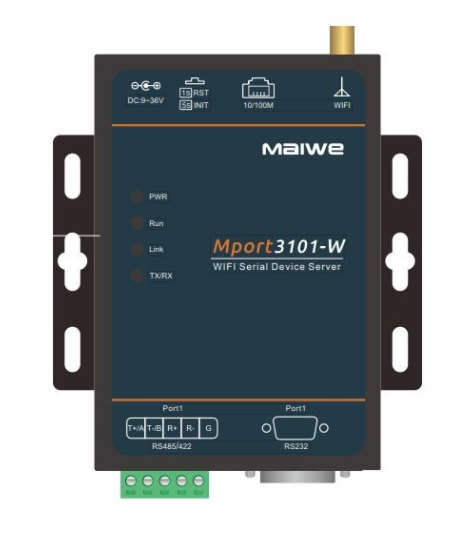

Mport3101-W is a Wi-Fi serial server product, which provides a solution for transparent transmission or protocol transmission between RS-232/485/422 interface devices and Wi-Fi network or wired network. Supports serial-to-Wi-Fi, serial-to-Ethernet, and Ethernet-to-Wi-Fi functions, and can convert serial (RS-232/485/422) into TCP/IP network interface, making The serial device can easily and quickly connect to the TCP/IP network, realizing the interconnection and intercommunication between the serial and the TCP/IP network.
Features and Benefits
-Support RS-232/485/422 to Wi-Fi/Ethernet data transmission, serial rate up to 230400bps
-Support 802.11 b/g/n standard
-Support LED status monitoring (display power, Run, Link, TX/RX)
-Support one-click restart and restore export settings
-External independent hardware watchdog design prevents crashes
-Support wireless operation AP/Client/AP+Client mode
-Support TCP/UDP/Modbus TCP protocol
-Support IP-MAC binding, static routing, PPPoE, DHCP, static IP and AUTO-IP functions
-Supports access device display, static routing, port forwarding, network diagnosis, access control
-Support NTP network automatic time adjustment
-Support WAN/LAN mode switching
-Support SNMP protocol and SNMP Trap report, email alert
-Support web login and upgrade mirror
-Support local system log, remote log, local log save regularly, etc.
