N13 : Industrial Computer
N13 Fanless System
◆ Fanless System;
◆ Onboard Intel Core i3 7100U, i3-8130U;
◆ Support DDR4 1866/2133 16G;
◆ Support 1*M.2，1* 2.5 inchs SATA;
◆ Support WIFI/3G/4G (choose 1 from 3);
◆ Support 4*USB3.0, 2*USB2.0 ;
◆ Support Desktop、Din Rail Mount、VESA, etc.
|
System Parameter |
|
|
Model |
N13 |
|
Processor |
Onboard Intel Core i3 7100U/i3 8130U（Dual core four threads, 2.4GHZ） |
|
Onboard Intel Core i5 7200U (Dual core four threads，2.5GHz，Max turbo 3.1GHz） |
|
|
Memory |
Support 1*DDR4 1866/2133 MHz SODIMM，MAX: 16GB |
|
CPU Architecture |
KabyLake-U |
|
Display Chip |
Integrated Intel UHD Graphics 620 |
|
Display Port |
1*DP，1*HDMI（Support synchronous or asynchronous dual display） |
|
Storage |
Support 1*M.2 2280 Slot，1*2.5”HDD |
|
Expansion |
Support 1*M.2 2280 slot（Compatible with PCIE X4 and SATA signal） Support 1*MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate |
|

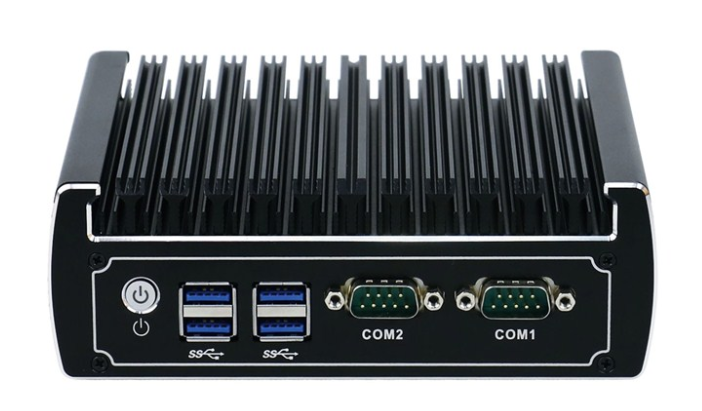

I/O |
4*USB3.0,1*Power Switch，2*COM(it is optional, we also can remove it )2*RJ45 1000M Lan, 2*USB2.0, 1*HDMI，1*DP, 1*two-in-one Audio, 1*DC 12V Port |
|
Network |
Support 1*MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate |
|
Input Voltage |
Support DC 12V Input； |
|
Certificates |
CE、 CCC、 FCC Class A、 ROHS |
|
Other Function |
Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
|
Application |
Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
|
Structure Parameter |
|
|
Color |
Black【Any color can be customized】 |
|
Material |
Aluminum Alloy，sheet metal structure |
|

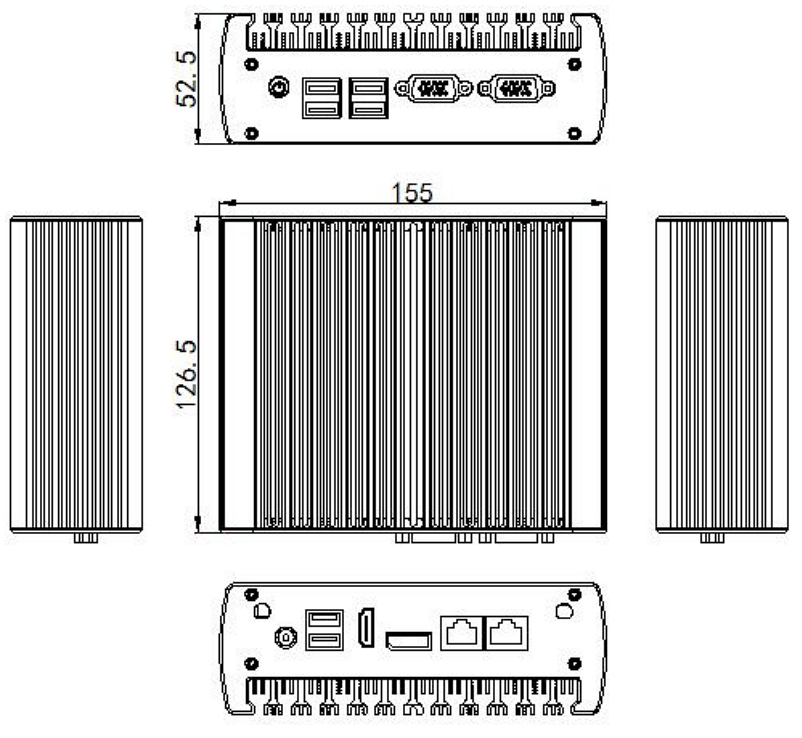

Dimension |
155 * 126.5 * 52.5mm |
|
Weight |
1.6kg |
|
Environmental Parameter |
|
|
Work Temp |
10℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃Industrial SSD），Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
