PPC-HW1562NBCT-11 : Industrial Panel PC 15.6”

Display Screen

15.6″

Resolution

1920*1080

Brightness

250cd/㎡(Typ.)

Viewing Angle

89/89/89/89(Typ.)(CR≥10)

Touch Screen

10 point Capacitive Touch Screen

CPU

Standard: I5-1135G7 Processor 4C/8T 900MHz~4.2GHz
Optional: I7-1165G7 Processor 4C/8T 1.2GHz~4.7GHz
I3-1115G4 Processor 2C/4T 1.7GHz~4.1GHz
6305E Processor 2C/2T at 1.8GHz

Chipsets

MCU

BIOS

AMI UEFI

RAM

Max 64GB DDR4 3200,2*non-ECC SO-DIMM Slot ,Standard 1*8G DDR4 3200 Notebook Memory

Display

Intel®HD Graphics

Expansion Slot

Dual network ports: 1*M.2 (KEY-M, 2280, SATA SSD)
1*M.2 (KEY-E, 2230, PCIE+USB2.0, support WiFi+BT)
1*M.2 (KEY-B, 3052, PCIE/USB3.0+USB2.0, support 5G+4G/3G)
Quad Network Port: No Expansion

LAN

Standard Dual network ports: 1*Intel I219 (10/100/1000Mbps adaptive network port, support Wake-on-LAN)
1*Intel I225 (10/100/1000Mbps adaptive network port)
Optional quad network port: 1*Intel I219 (10/100/1000Mbps adaptive network port, support Wake-on-LAN)
1*Intel I225 (10/100/1000Mbps adaptive network port)
2*Intel I210 (10/100/1000Mbps adaptive network port)

Hard Disk

Dual network ports: support 1* M.2 (KEY-M, 2280, SATA SSD)
1* 2.5-inch hard drive bay
Standard M.2 SATA SSD 128GB hard drive
Quad LAN port: support 1* 2.5″ HDD bay

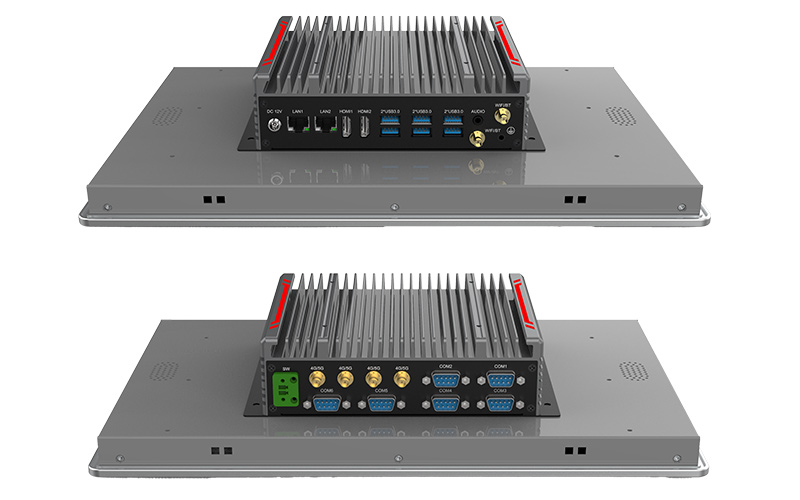

I/O Port

2*HDMI
Dual network port: 6 * COM (standard 6 * RS232, COM6 optional RS232/485)

Quad network port: 2*COM Rs232
6*USB3.0
1*3.5mm audio jack (Line-Out + MIC 2in1)
1*Remote switch,1*SIM slot,1*DC power connector (with thread)

Operating Temperature

-10℃-50℃

Storage Temperature

-20℃-60℃

Storage Humility

5%~95%(non-condensing)

Power

DC12V input (Standard 12V 60W Power Adapter）

ESD

Anti-contact 6KV, air gap 8KV electromagnetic interference

Vibration

GB/T2423.10

Waterproof

Front panel IP65

Material

Aluminium-magnesium alloy, galvanised steel

Mounting

Embedded,Wall Mount,VESA Bracket

OS

Windows® 10/linux

Dimension

389.9MM*249.9MM*78.1MM

Weight

3.5（KG）
