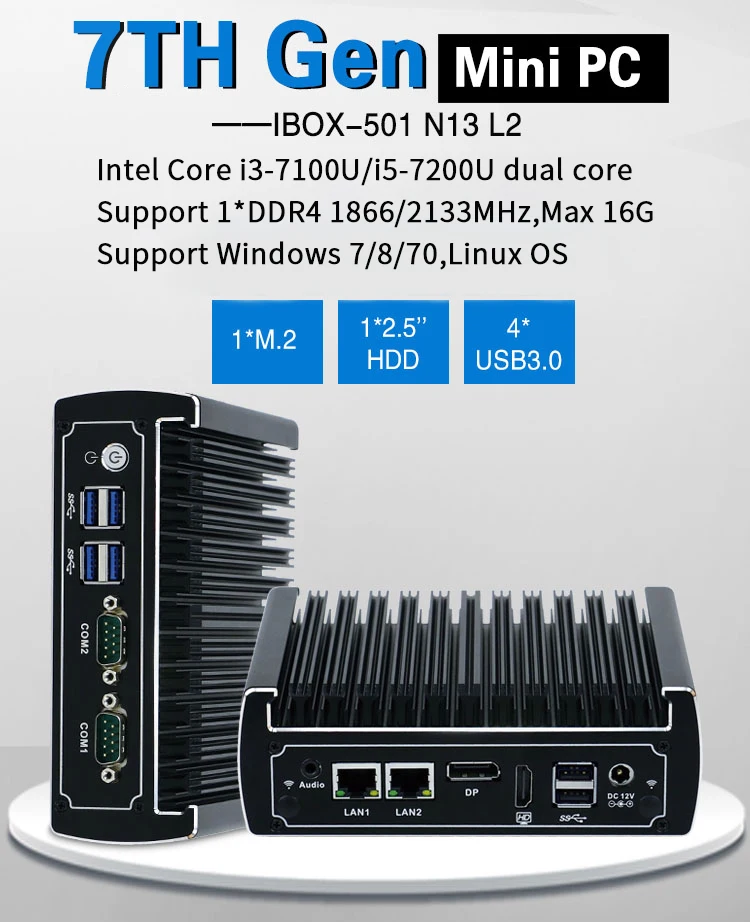

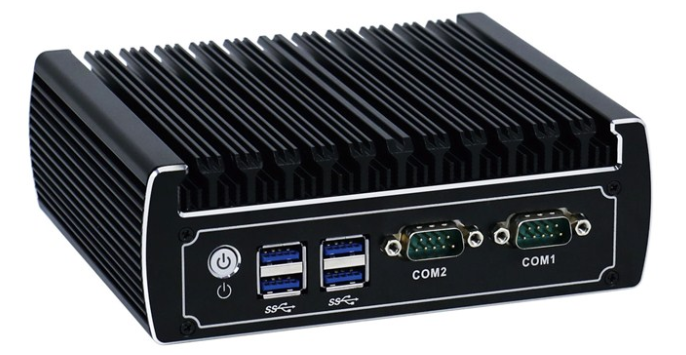

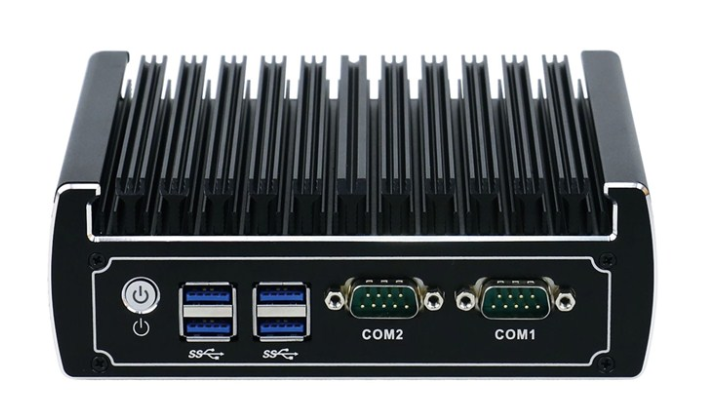

Recommenced-Industrial mini PC-Ibox-N3 Series
- IBOX-501 N13L2
- Fanless All Alminum Design
- Onboard Intel Skylake i3 71 00U, i5 7200U
- Support MAX DDR4 21 33/2400 1 6G
- Support 1 *M.2， 1 * 2.5 inchs SATA
- Support WIFI/3G/4G(choose 1 from 3)
- Support 4*USB3.0, 2*USB2.0
- Applied OS：
|  |  |
7th gen cpu kaby lake core i5 7200u processor mini pc with dual lan ports SIM slot support M.2 port
Feature
1) skylake core i3 6100u, i5 6200u, kaby lake core i5 7200u is optional;
2) Support 1*DDR4 1866/2133MHz, max 8G;

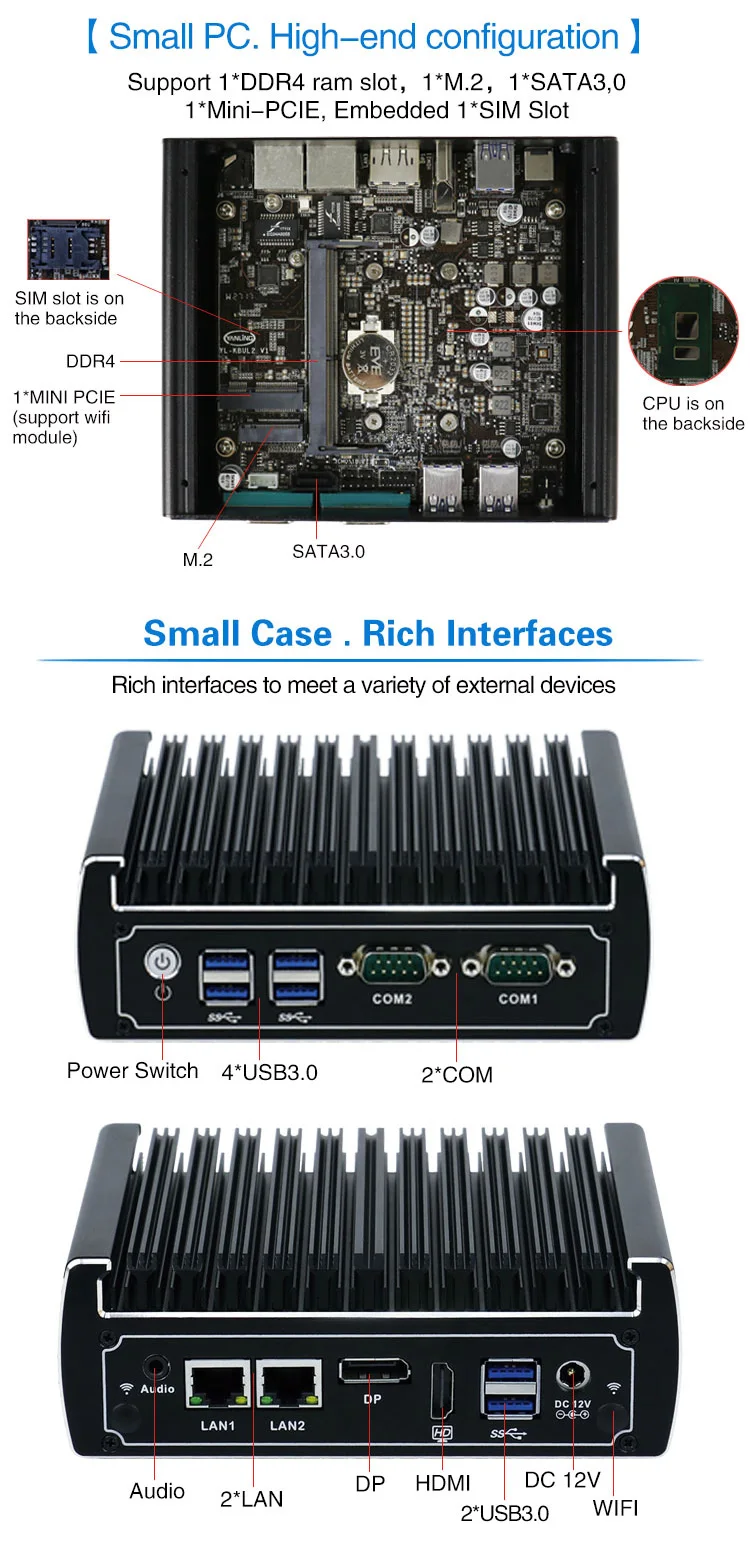

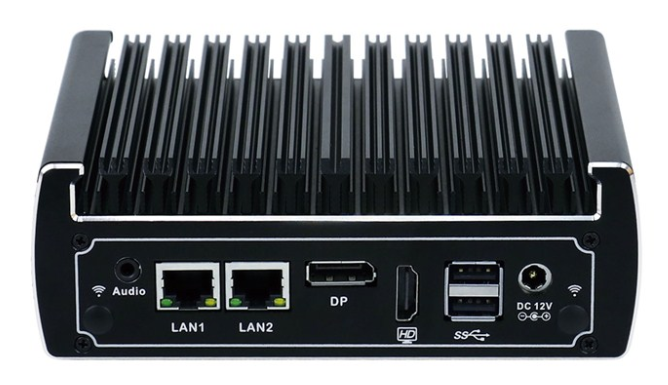

3) Support 1*DP+1*HD+2*LAN+2*COM+6*USB3.0+1*Audio;
4) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT

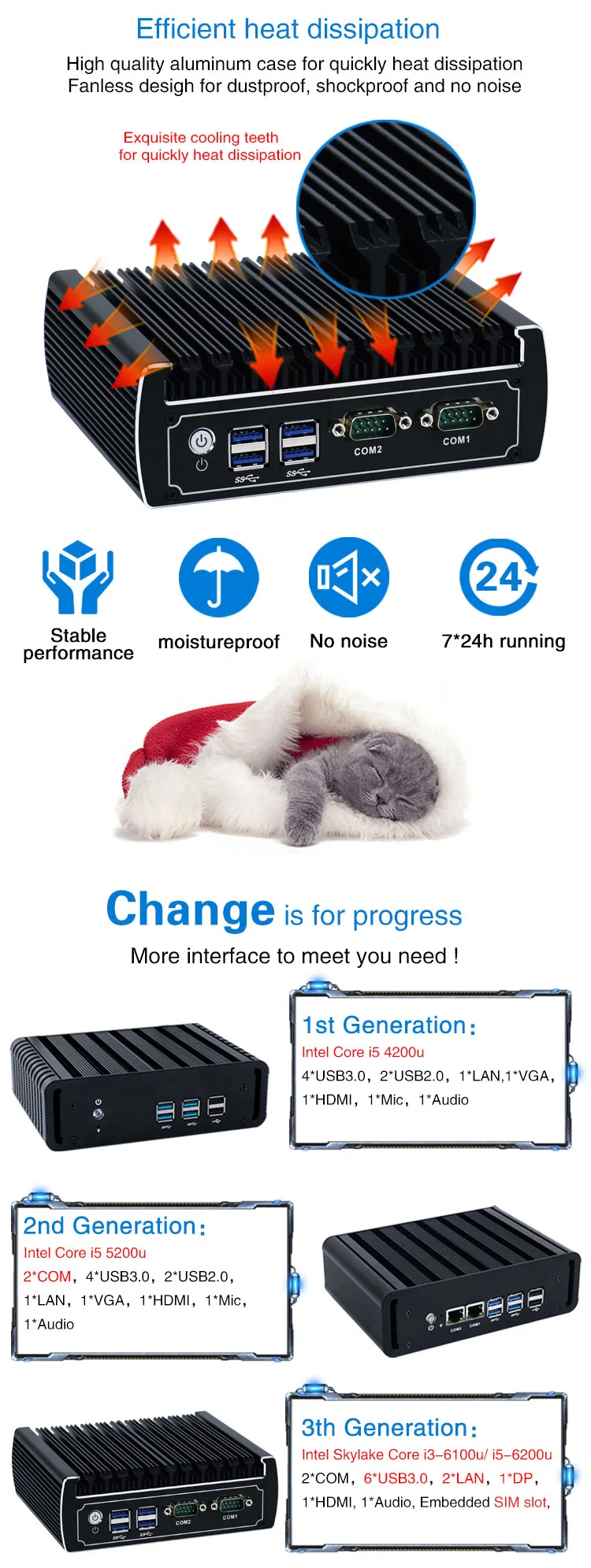

5) High-quality pure aluminum Case

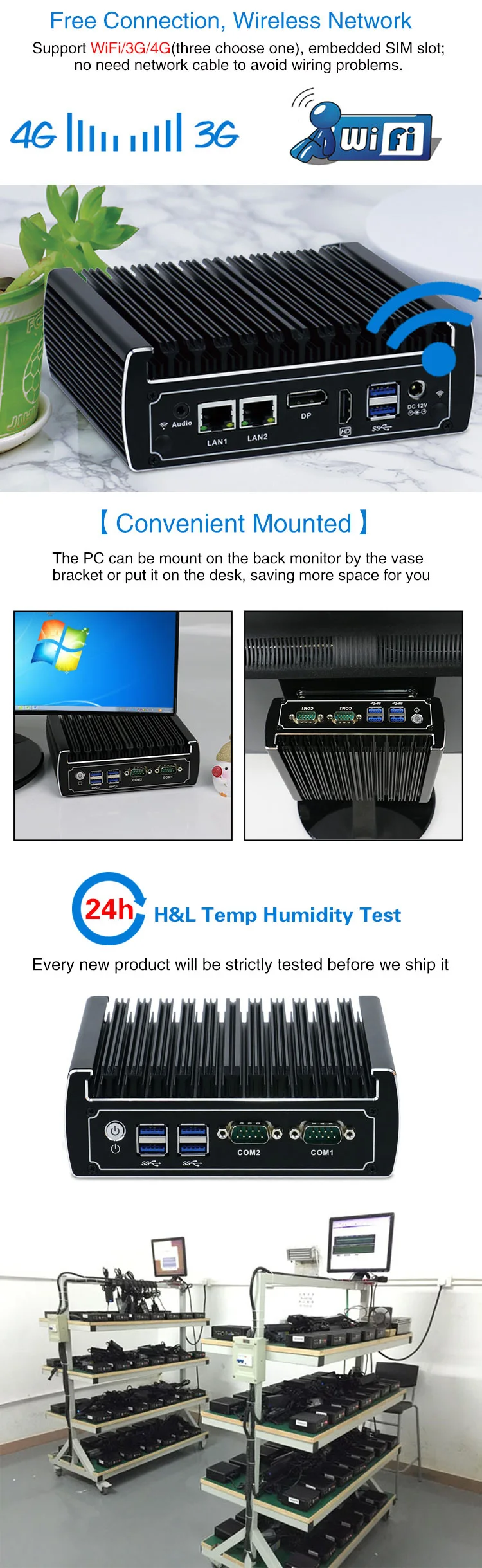

6) 1*M.2(PCIE 4X signal), 1*SATA3.0, 1*MINI-PCIE(support wifi/3G/4G), embedded SIM slot
7) 2*RTL8111E 1000M lan card, support wake on lan
8) DC-IN 12V power supply and AC power adapter
9) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,
Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc
| Specification | |
| Model | IBOX-501 N13 L2 |
| Case | High-quality pure aluminum mini pc case |
| CPU | Skylake Core i3-6100u, Core i5-6200u, Kaby lake Core i5-7200u |
| Chipeset | Adopt express chipset |
| Mainboard | 12*12CM mini itx motherboard |
| Usable system | Win 7/8/10, linux OS |
| Memory | Support 1*DDR4 1866/2133MHz , Support Max 8G |
| Graphic card | Integrated HD graphic card 520/620 |
| Storage | 1*M.2, 1*SATA3.0, (16G/32G/64G/128G/256G/500/1TB optional) |
| BIOS | AMI 64Mbit SMT Flash ROM |
| I/O | 2*WiFi hole |
| 6*USB3.0 | |
| 2*RJ-45 lan | |
| 1*DP | |
| 1*HD | |
| 2*COM | |
| 1*Audio | |
| 1*Power Switch | |
| expansion slot |
1*Mini-PCIE (support wifi/3G/4G optional), embedded SIM slot
|
| Network |
2*RTE8111E 10/100/1000M Lan |
| Temp | -10 ~ 60 °C |
| Power supply | Support DC-IN 12V input |

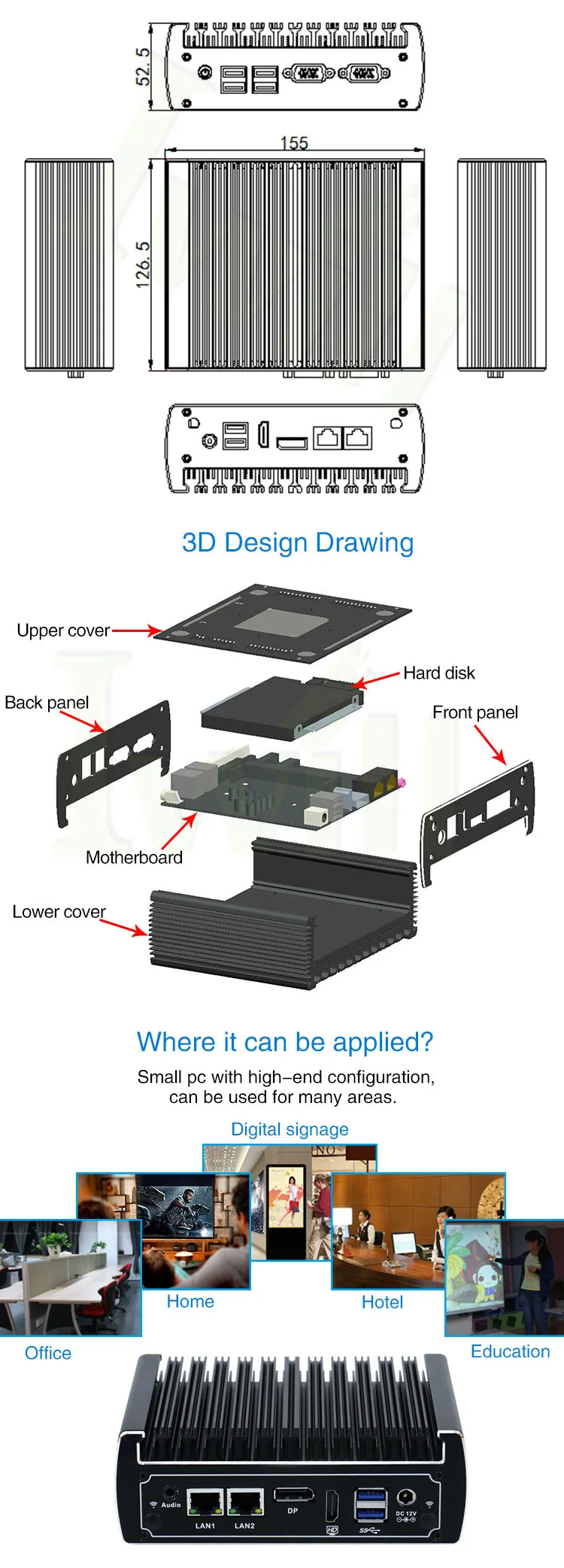

| Dimension | 155* 126.5 * 52.5mm |
