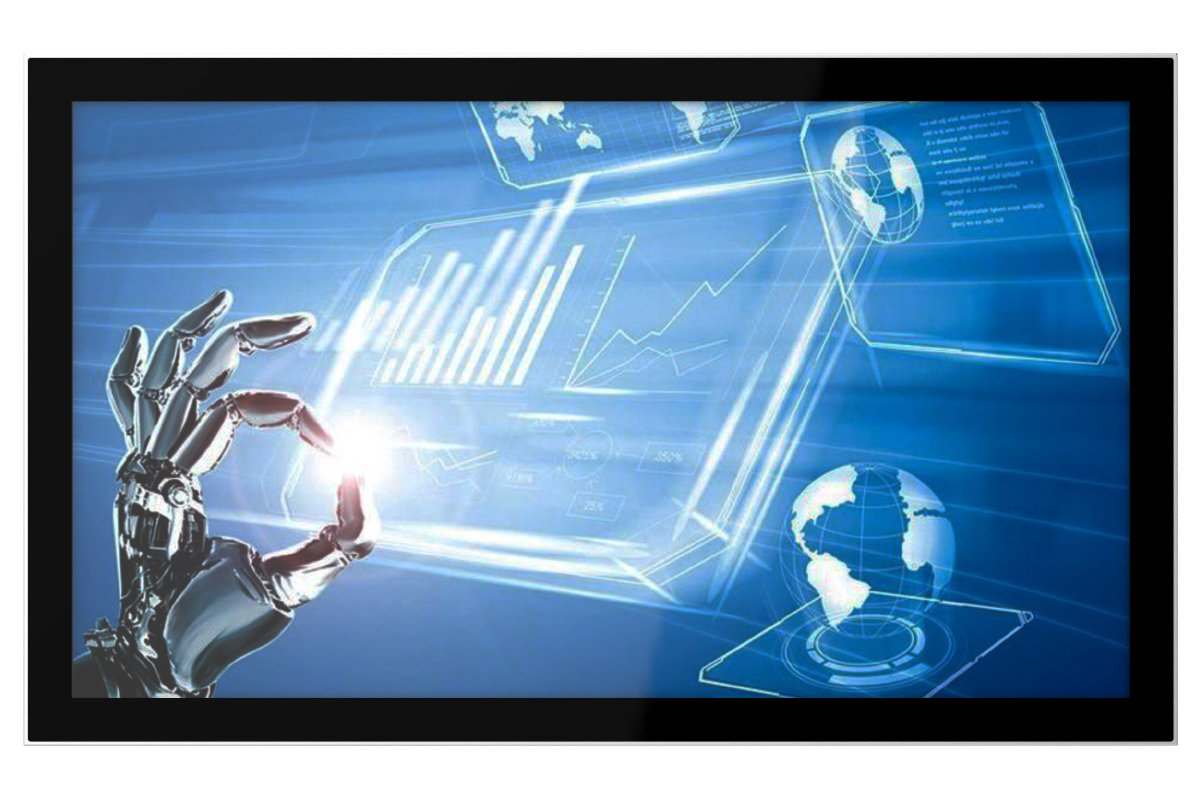

Rich IO Pcap. touch Industrial Panel PC (TPC-PC Series)

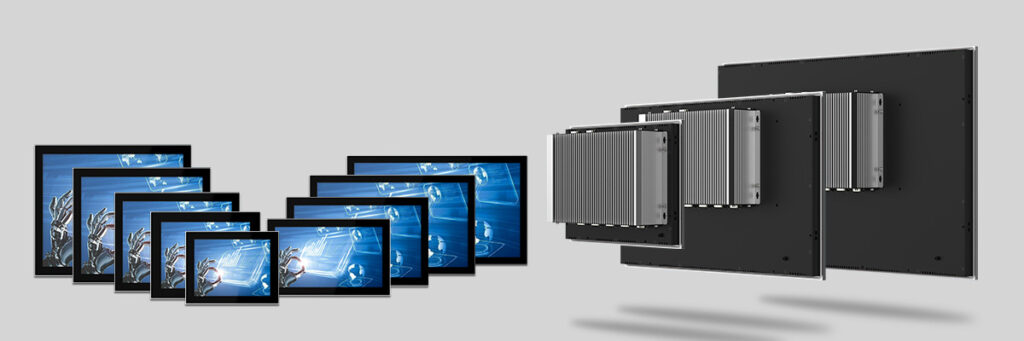

TPC-PC series is modular designed panel mount Pcap. Touch Panel PC, can be equipped with a variety of Intel Celeron and 6th or 7th Core i3/i5/i7 processors. It is designed with 2*GLAN, 6*USB, 6* COM, 1* HDMI and 1*VGA ports. The available dimension is range from 10.4 to 24 inches.
| Product Image | Model Name | Display | CPU | Resolution & Brightness | Touch | IO | Expansion |
 | TPC-PC104K | 10.4-inch | Kaby lake Core i3-7100U/ i5-7200U/ i7-7500U | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* MiniPCIe slot |
| | TPC-PC104N1 (Support XP) | 10.4-inch | Intel Cedar trail N2600, Dual-core 1.6Ghz processor; | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* MiniPCIe slot |
| TPC-PC104W | 10.4-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* MiniPCIe slot |
| TPC-PC121C | 12.1-inch | J1900, Quad-core 2.0Ghz | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 1*USB3.0, 4*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* MiniPCIe slot |
| TPC-PC121W | 12.1-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* MiniPCIe slot |
| TPC-PC150N1 | 15.0-inch | Intel Cedar trail N2600, Dual-core 1.6Ghz processor; (Support XP) | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | |
| TPC-PC150K | 15.0-inch | Kaby lake Core i3-7100U/ i5-7200U/ i7-7500U | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
| TPC-PC150W | 15.0-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1024*768 | 350nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
 | TPC-PC156HK | Widescreen 15.6-inch | Kaby lake Core i3-7100U/ i5-7200U/ i7-7500U | FHD 1920*1080 | 400nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
 | TPC-PC156W | Widescreen 15.6-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1366*768 | 500nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
| TPC-PC170K | 17.0-inch | Kaby lake Core i3-7100U/ i5-7200U/ i7-7500U | 1280*1024 | 250nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
 | TPC-PC185W | 18.5 -inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1366 * 768 | 250nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
| TPC-PC190W | 19.0-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | 1280*1024 | 250 nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
| TPC-PC215W | 21.5 -inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | FHD 1920 * 1080 | 250nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
| TPC-PC240W | 24.0-inch | Celeron 4205U/Core i3-8145U/i5-8265U/ i7-8565U | FHD 1920 * 1080 | 250nits | 10 points Pcap. touch | 2*GLAN, 4*USB3.0, 2*USB2.0, 6*COM, 1*HDMI, 1*VGA | 1* Mini-PCIe slot |
