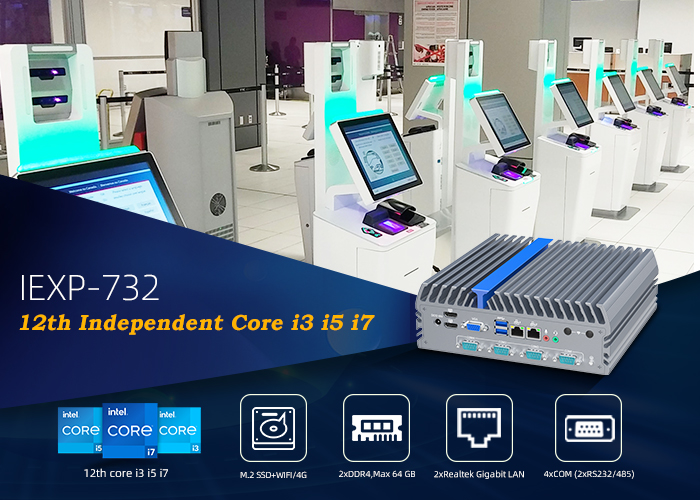

I5-12500T Industrial Mini PC Intel 12th Independent Core I5 6 Core With 4 COM
Product Details:
| Place of Origin: | China |
| Brand Name: | SMATIPC |
| Certification: | CE, FCC, CCC |
| Model Number: | IEXP-732 |
Product Description:
The IEXP-732 Industrial Mini Pc comes equipped with i5-1235U processor and supports up to 64GB of DDR4 memory , 2 network interfaces, allowing for easy connectivity and access to your network. You can also take advantage of its multiple I/O ports, including USB 3.0, USB 2.0, COM, LAN, VGA, and HD-MI, making it a versatile device that can accommodate all your needs.
Technical Parameters:
| Parameter IEXP-732 | Storage | |||
| Processor | Intel Core i3-12300T (4 core 8 threads, Max 4.2GHz)Intel Core i5-12500T (6 core 12 threads, Max 4.4 GHz)Intel Core i7-12700T (12 cores 20 threads, Max 4.7GHz) | M.2 | 1xM.2 2280 M-key slot ( support PCIE3.0 x4 NVME)(support SATA SSD requires resistor switching signal) | |
| Chipset | H610 | SATA | 1×2.5 inch HDD | |
| Memory | 2xDDR4 3200MHz SODIMM slot, Max 64 GB | Expansion | ||
| Graphics Card | Mini PCIE | 1xfull-length Mini PCIE slot (support PCIE & USB2.0 singal,Optional 4G/WIFI/BT), internal Nano-SIM card slot | ||
| Graphics | Integrated Intel® UHD Graphics 730/770 (synchronous/asynchronous dual display) | |||
| Display | 1xHDMI Port (Resolution 3840×2160 @60Hz)1xVGA (Resolution 1920×1080 @60Hz) | Dimension | ||
| Size | 215 x 203 x 75 mm | |||
| Ethernet Network | Weight | 3.27 kg (Barebone) | ||
| Lan Port | 2xRealtek RTL8111H Gigabit LAN | Installation | Wall-mounted (standard included), desktop (default support) | |
| I/O | Environment | |||
| USB | 2xUSB3.0, 6xUSB2.0 | Temperature | -20℃~ +60℃, Surface air flow | |
| COM | 4xCOM (COM1/2 RS232/485 Optional) | Humidity | 5%~95% Non-condensing state | |
| Audio | 1xLine out, 1xMIC | Other Function | Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption | |
| Power Supply | ||||
| Power Supply | 1xDC Input (5.5×2.5mm), support 12V~19V | Application | Industrial automation, medical, logistics, transportation, warehousing, e-education and other fields | |
Applications:The IEXP-732 Industrial Mini Pc Intel 12th is an ideal solution for a wide range of industrial applications, including factory automation, process control, and machine vision.
