Size: 17″

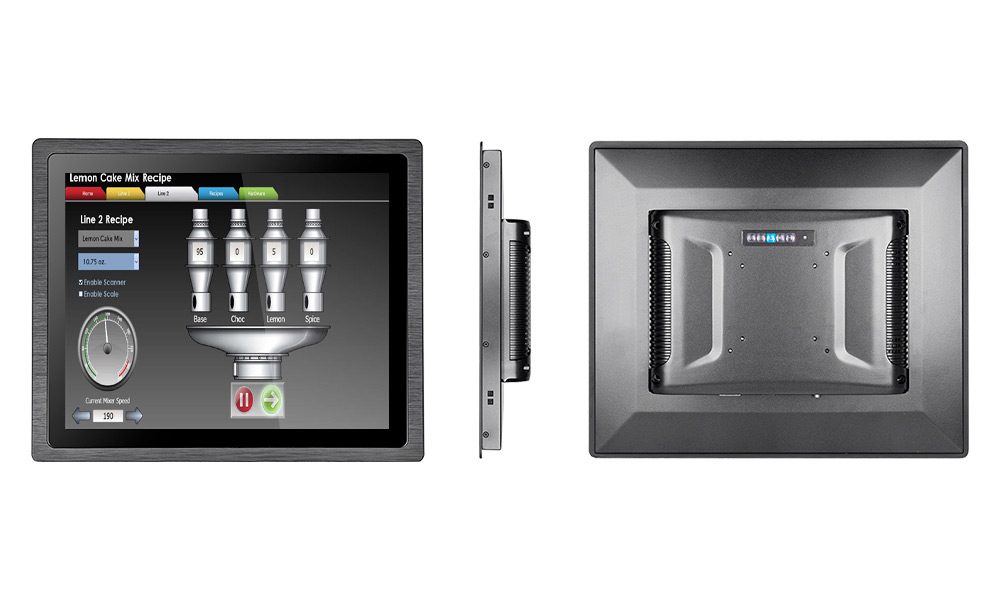

Interactive Display Industrial Touch Screen Monitor 17 inch
Model: TPC170-M211
The Touch Think 17-inch industrial touchscreen monitor delivers high-quality pictures for users no matter for indoor or outdoor devices. The industrial monitors are designed for multi applications and withstand a wide operating temperature range in harsh environments. Offering multiple I/O interfaces to meet various needs, and support I/O expansion.
Industrial Monitors Features
● Screen size: 17-inch, 1280×1024
● Panel type: LCD Monitor
● Display Color: 16.7M
● Contrast Ratio: 1000 : 1 or better.
● Brightness 350 (cd/m2) to 800 (cd/m2)
● MTBF (LCD): 50,000 hrs
● Touchscreen: Capacitive, or Non-touch
● Support IP65 front panel
● I/O ports: 1*VGA + 1*HDMI+ 1*DP+1*DVI
● Supports On-Screen Display (OSD), such as 5 buttons.
● IP65 rated dust-proof and waterproof for the front panel.
● CE or FCC compliant
● Ideal for industrial automation, factory production line, and kiosks (including vending machines, medical self-service devices, public self-service devices, etc.).
|
||
| Screen Parameters | Screen size | 17 inch |
| Model | TPC170-M211 | |
| Resolution | 1280*1024 | |
| Aspect Ratio | 5:4 square screen | |
| MTBF (LCD) | 50,000 hrs | |
| Gray-scale response time | 5ms | |
| Panel Type | Industrial LCD panel A+ grade | |
| Active Area (mm) |
341.5*274mm |
|
| Contrast | 1000:1 | |
| Display color |
16.7M |
|
| Visual angle | 80°/80°/70°/70° | |
| Brightness | 350cd/m2 ~ 800cd/m2 high brightness | |
| Touch type | Ten-point capacitive / Non-touch | |
| I/O Parameters | 1*DVI, 1*HDMI, 1*VGA, 1*DP | |
| Reliability | Operation temperature | -30°C～85°C |
| Storage temperature | -30°C～90°C | |
| Operation humidity | 10%-80% | |
| Storage humidity | 10%-90% | |
| Mechanical | Material | Aluminum Alloy |
| Color | Black or Silver | |
| IP-rated | IP65 dust-proof and waterproof front panel | |
| Installation | VESA (Embedded, desktop, wall-mounted options) | |
| Power | Power Input | 110-240V, 50/60HZ |
| Support AC to DC Power adapter | ||
| Others | Menu languages | English/Portuguese/French, etc. |
| Certificate | CE, FCC, RoHS, ISO, CB | |
| Warranty | Two years | |
