MODEL : TPC-DCM150C
- Magnesium aluminum panel, sheet-metal box structure;
- 15.0″ TFT LCD, LED backlit, resolution 1024*768;
- Intel Baytrail J1900 2.0Ghz, burst to 2.4Ghz processors;

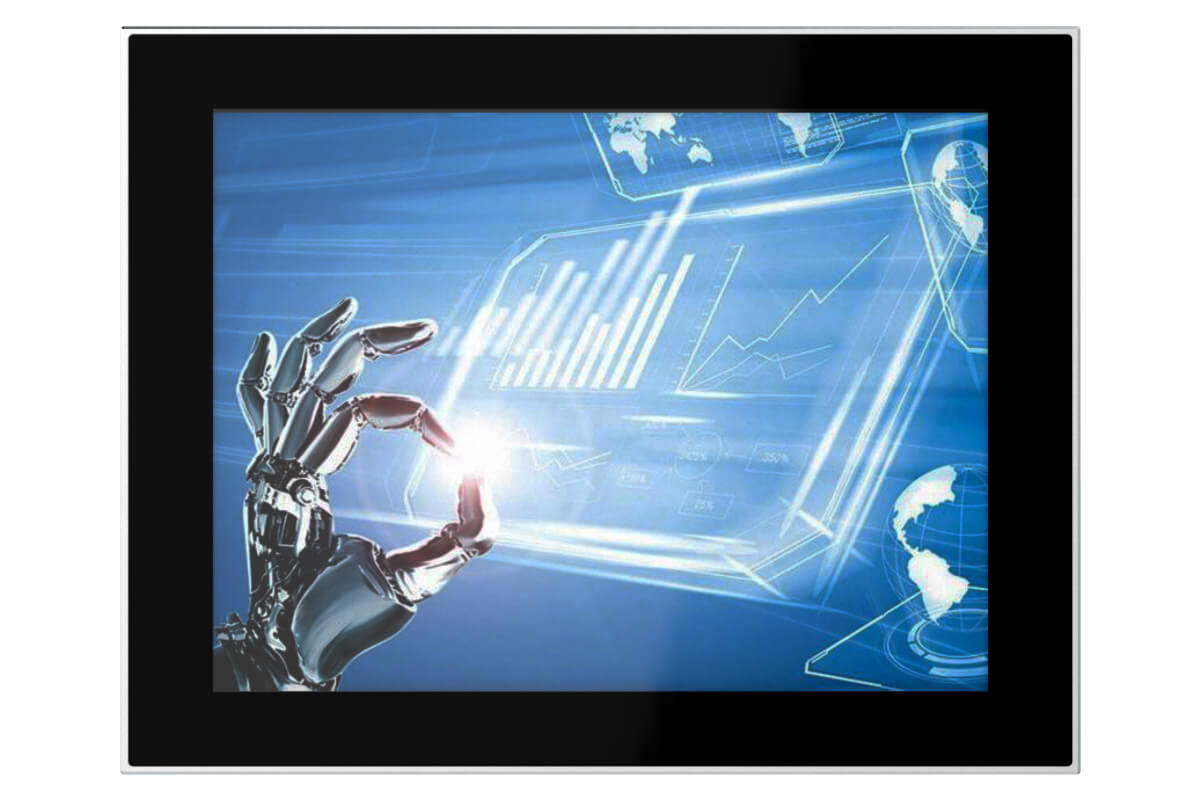

TAICENN TPC-DCM150C series is a low power-consumption, Fan-less designed, enhanced stability and reliability industrial 15.0-inch Touch Panel PC product. It adapts Intel Baytrail J1900/J1800 processor. TPC-DCM150C series storage can support 2.5 SATA and mSATA interface, HDD or SSD. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.

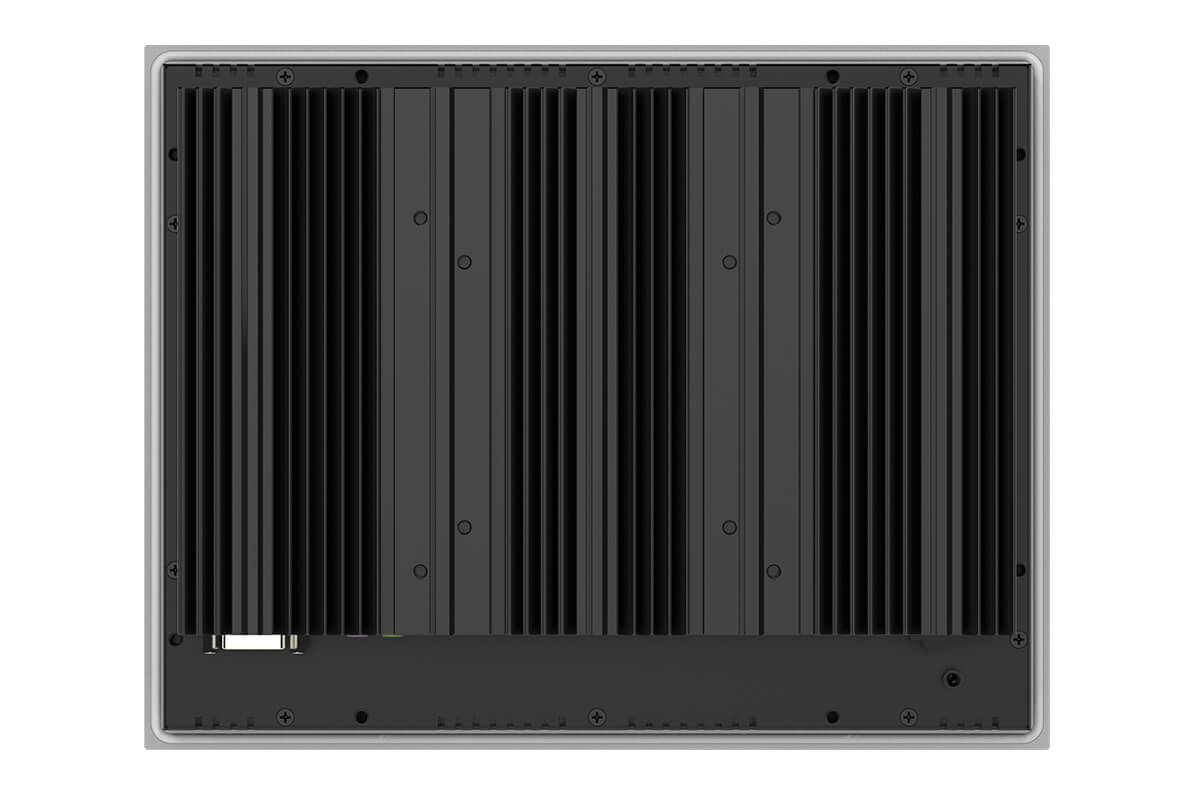

The TPC-DCM150C uses full-sealed box construction, and it can prevent dust from entering the device system, is compatible with Win7, Win8, Win Embedded, WIN10, Linux OS, and it also has a good compatibility with customized applications and software programs.
Specification ;
- Magnesium aluminum panel, sheet-metal box structure;
- 15.0″ TFT LCD, LED backlit, resolution 1024*768;
- Intel Baytrail J1900 2.0Ghz, burst to 2.4Ghz processors;
- Multi-points projective capacitive touch, EETI controller;
- Fanless & slim design, front IP65 rated protection;
- Panel mount, support VESA 75/100 mount;
- DC 9~24V input, with over-current, over-voltage protection;
- 2*Intel GLAN, 2*RS232 (Optional 1*RS485), 4*USB (1*USB3.0);
- Expansional with 3G/4G/LTE, Wi-Fi/BT wireless;
- Optional with 2 x 2w mini speaker;

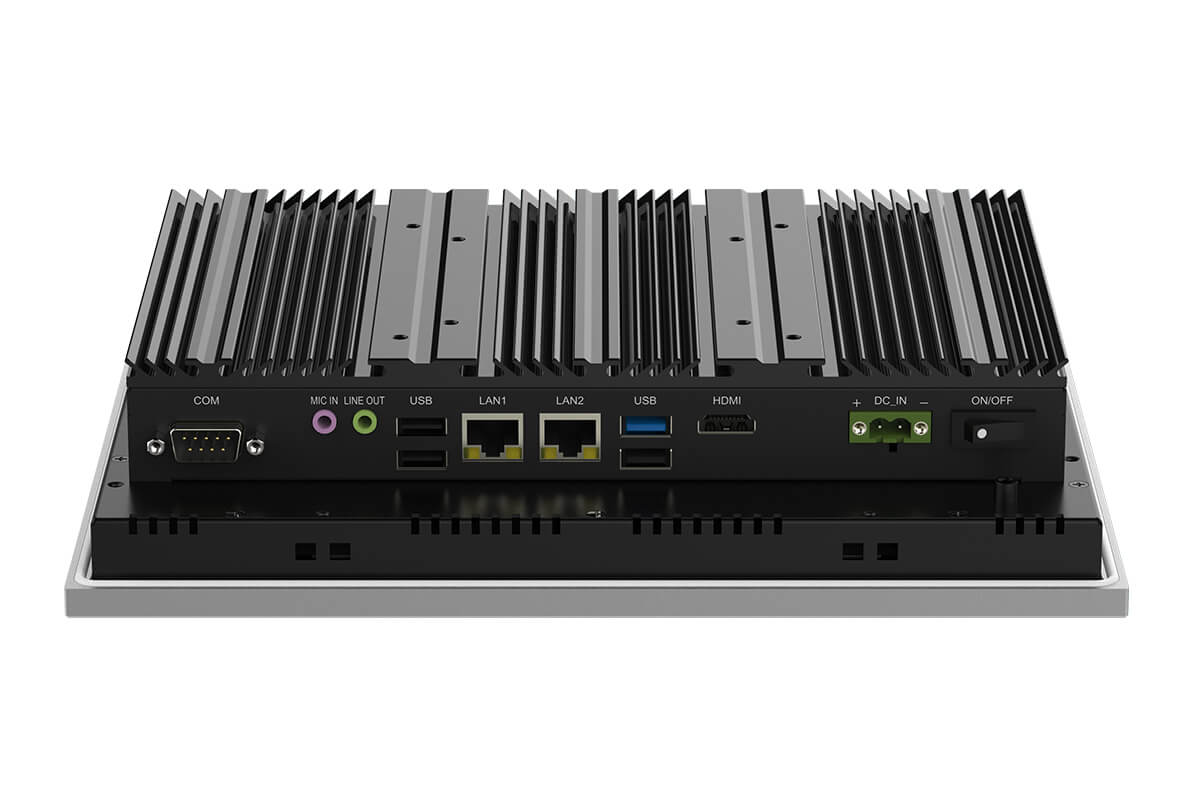

- I/O: 4x USB, 2x GLAN, 2x COM, 1x HDMI, Audio.
 |  |  |
