Model: TPC-DRM215C
● High-strength aluminum-magnesium alloy material, sheet metal structure;
● 21.5-inch LCD screen, LED backlight, resolution 1920*1080;
● Intel Baytrail platform, J1900 quad-core 2.0Ghz processor;
● Pure plane design, 5-wire precision resistive touch , EETI touch algorithm;
● Fanless pure plane and ultra-thin design, front panel IP65 protection;
● Embedded panel installation, support VESA 75/100 installation;
● DC 9~24V voltage input, with overvoltage and overcurrent reverse connection power supply Protection;
● 2 Intel Gigabit Ethernet ports, 2 serial ports (optional 1 RS485), 4 USB3.0 ports (1 USB3.0);
● Optional expansion 3G/4G/LTE, or WIFI/Bluetooth Wireless expansion;
● Optional 2x 2w mini speakers;

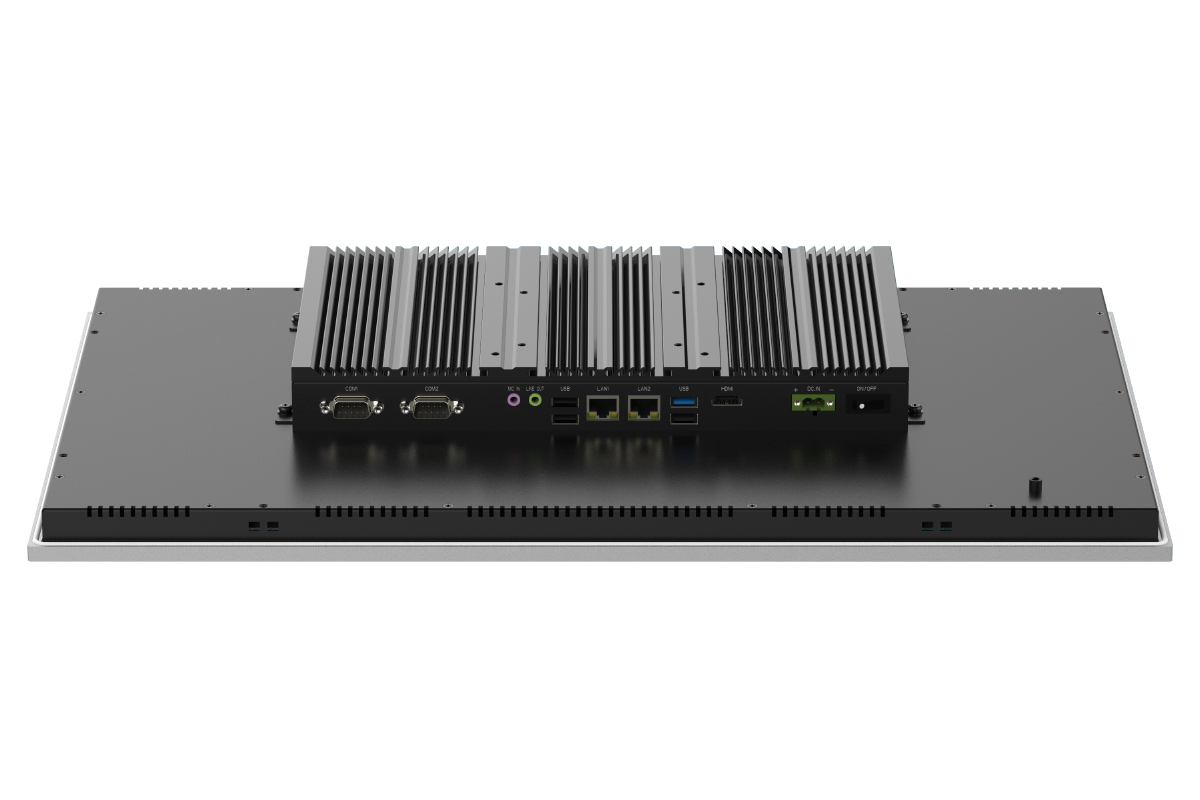

● I/O interface: 4 USB, 2 GLAN, 2 COM, 1 HDMI, audio.
 |  |  |  |

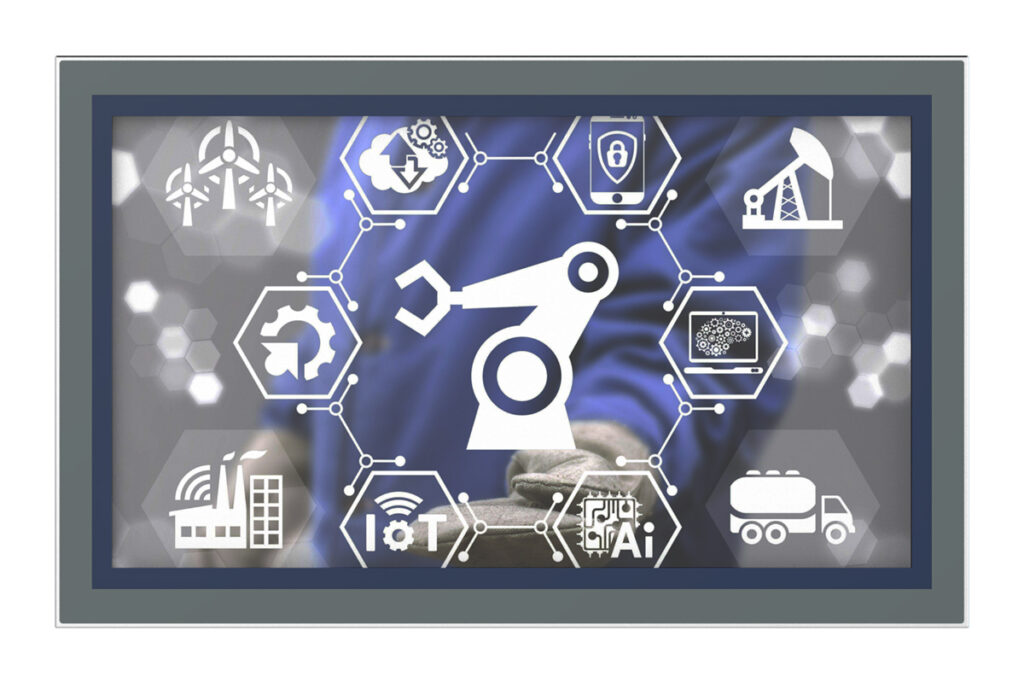

TAICENN TPC-DRM215C series is an ultra-thin fanless, widescreen 21.5-inch resistive touch industrial panel computer. It uses a 21.5-inch high-resolution LCD screen with a resolution of 1920*1080. This product design uses a pure flat high-temperature precision five-wire resistive touch design, and special treatment of the front PET film, the front surface can achieve IP65 protection and protection; a rich input and output interface is designed, including 2 Gigabit Ethernet ports of Intel chips, 4 USB, 2 RS232 serial ports, 1 HDMI video interface and audio input and output interface; this product supports a 2.5-inch SATA or 1 mSATA storage interface, the resistance touch interface defaults to USB (optional RS232 interface); power input is DC DC 9~24v; this ultra-thin industrial tablet can optionally support 3G/4G/Wi-Fi/Bluetooth expansion, and two 2w built-in speakers; at the same time, the TPC-DRM215C computer can support embedded installation and VESA 75/100 installation, compatible with mainstream Win7, Win8, Win embedded, WIN10, Linux operating systems in the market.

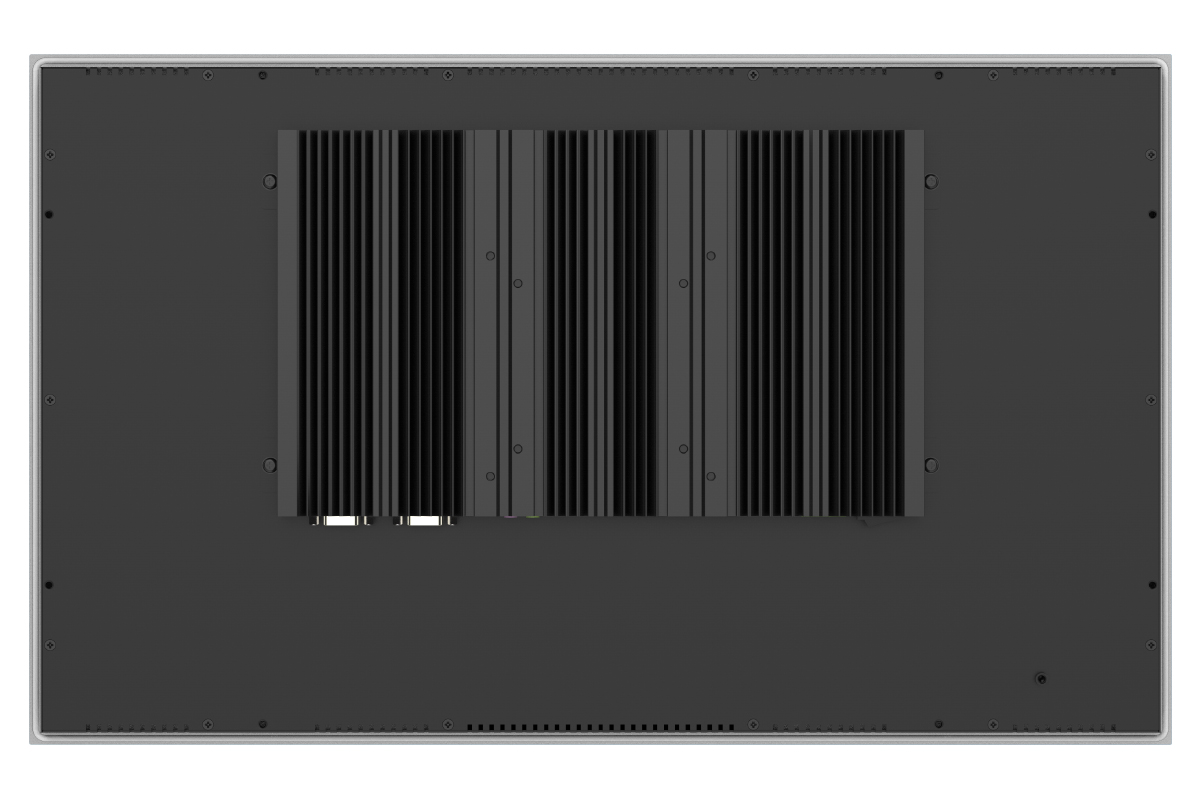

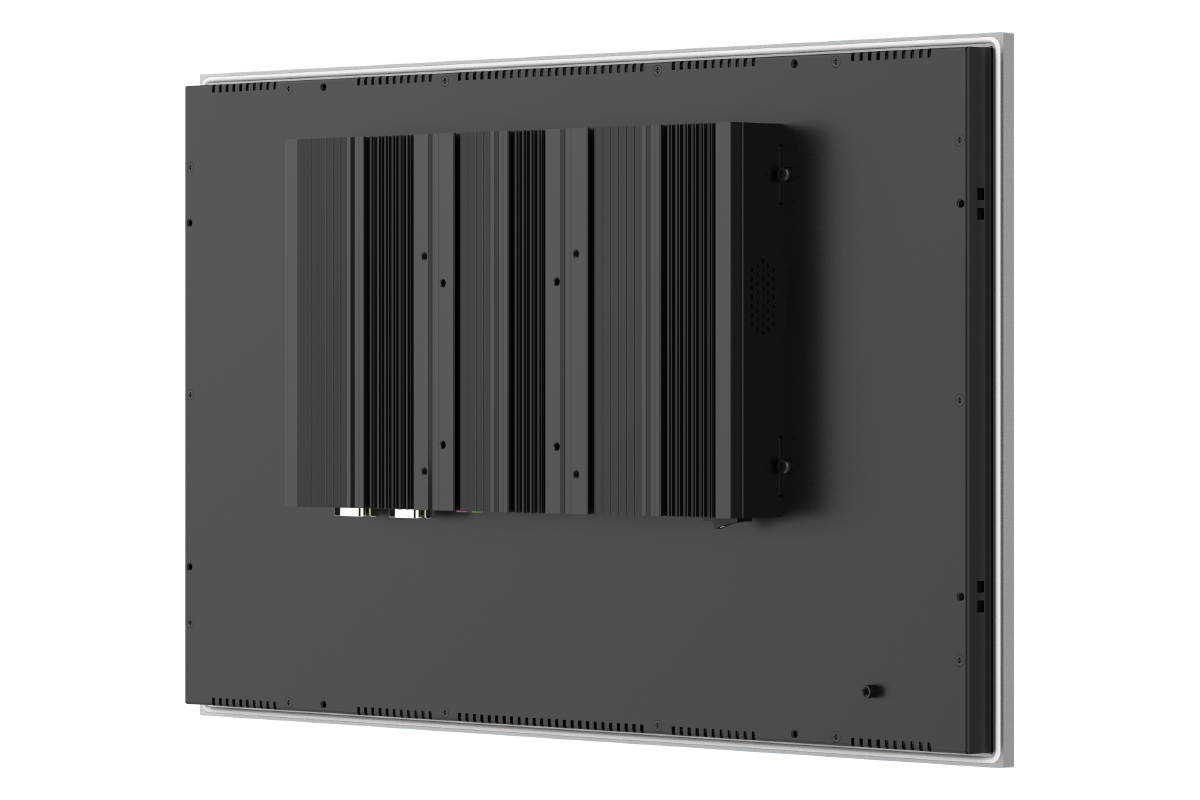

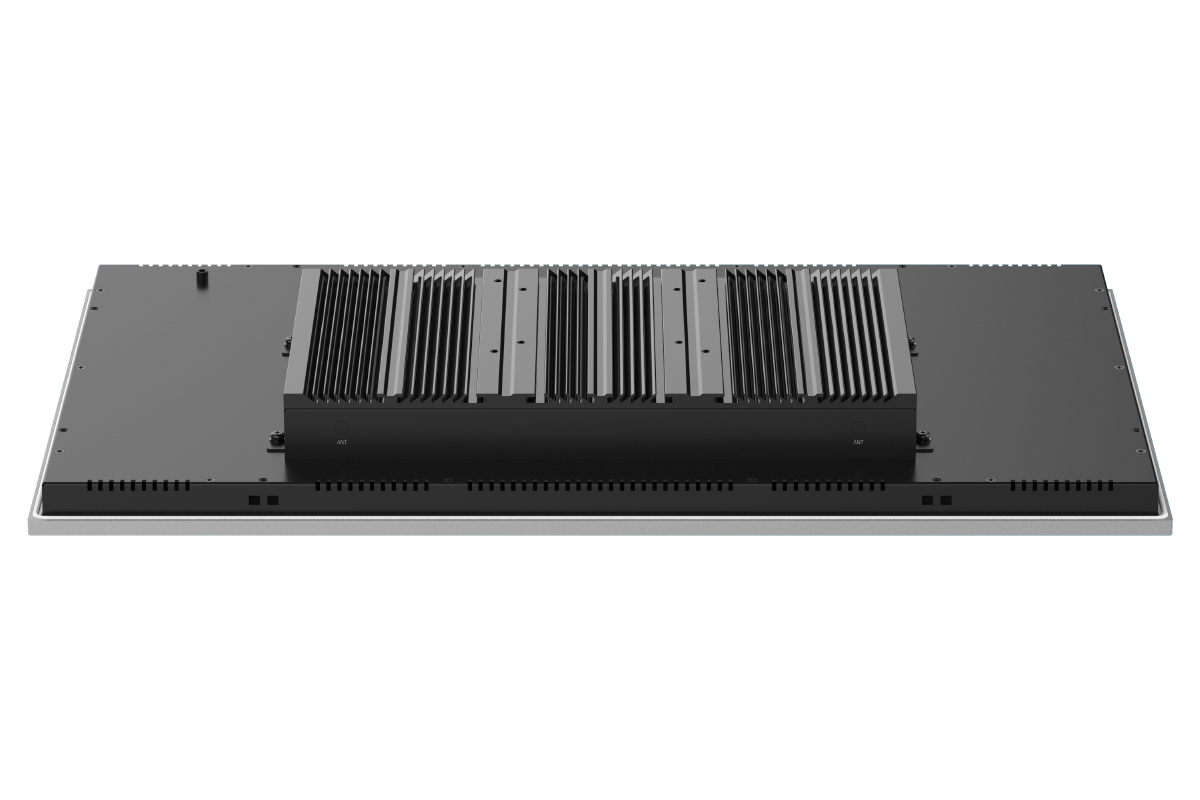

TPC-DRM215C adopts a fully sealed metal box structure, and the front panel meets NEMA and IP65 waterproof and dustproof standards, which can effectively prevent the dust layer or water droplets from entering the industrial control cabinet, thereby affecting the operation of the equipment. High-strength metal box structure and wide temperature range of 0~+60C working temperature, can be applied to complex industrial site environment, very used for factory automation, building automation, mechanical equipment, CNC equipment, heavy machinery, communication network, Power system and various types of industrial automation application fields.
