Rugged, Reliable & Scalable Industrial Box PC
Model：TBOX-2820
● High-strength, compact, sheet metal structure, large-area finned heat-sink, fanless design;
● Intel 8th-gen. Whiskeylake-U platform, Core i5-8365U 1.6Ghz, burst to 4.1Ghz;
● DDR4, max. up to 16GB memory, 2.5 ”SATA and mSATA storage;
● Wide voltage DC 9 ~ 24v input, with over-current and over-voltage protection functions;
● Industrial operating temperature range of -20 ~ + 70C;
● Robust and compact design with dimensions 236.5 x 150 x 60 (mm)
● Optional with 3G / 4G / LTE, Wi-Fi / Bluetooth and other industrial modules;
● Rich IO design: 2* GLAN, 6* COM, 4* USB3.0, 4* USB2.0, 1* HDMI, 1* VGA, Line-out, 1* GPIO + 1* CAN (optional)
Overview
TAICENN’s Industrial Box PCs and Fanless Embedded Computers are suitable for continuous-duty, mission-critical applications in the most challenging manufacturing and process environments. Users can assemble a highly customized, Industrial PC-based control solution to meet their specific system requirements, by incorporating the same powerful integrated unit that is the foundation for all TAICENN’s open platform HMI systems.

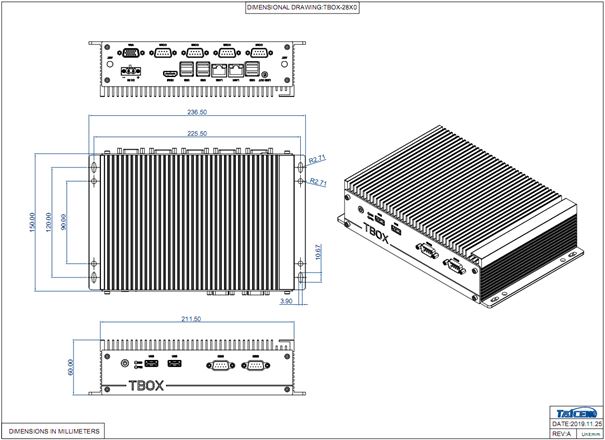

Dimension
