TM-PC121

MODEL : TM-PC121

● 12.1’’ TFT LCD, LED backlit, Resolution 1024*768;
● Projected capacitive touch screen (10-points) touch;
● Aluminum-magnesium alloy, anodized treatment;
● Multi DVI+VGA signal input, Panel mounting;
● DC 12V power input, Optional with wide-voltage 9~36V;
● USB touch interface, optional RS232 touch interface;
● Optional No-touch feature, with tempered glass.

Industrial Monitor : TM-PC121
TM-PC121_en-v3.0-DatasheetDownload

Basic Parameter

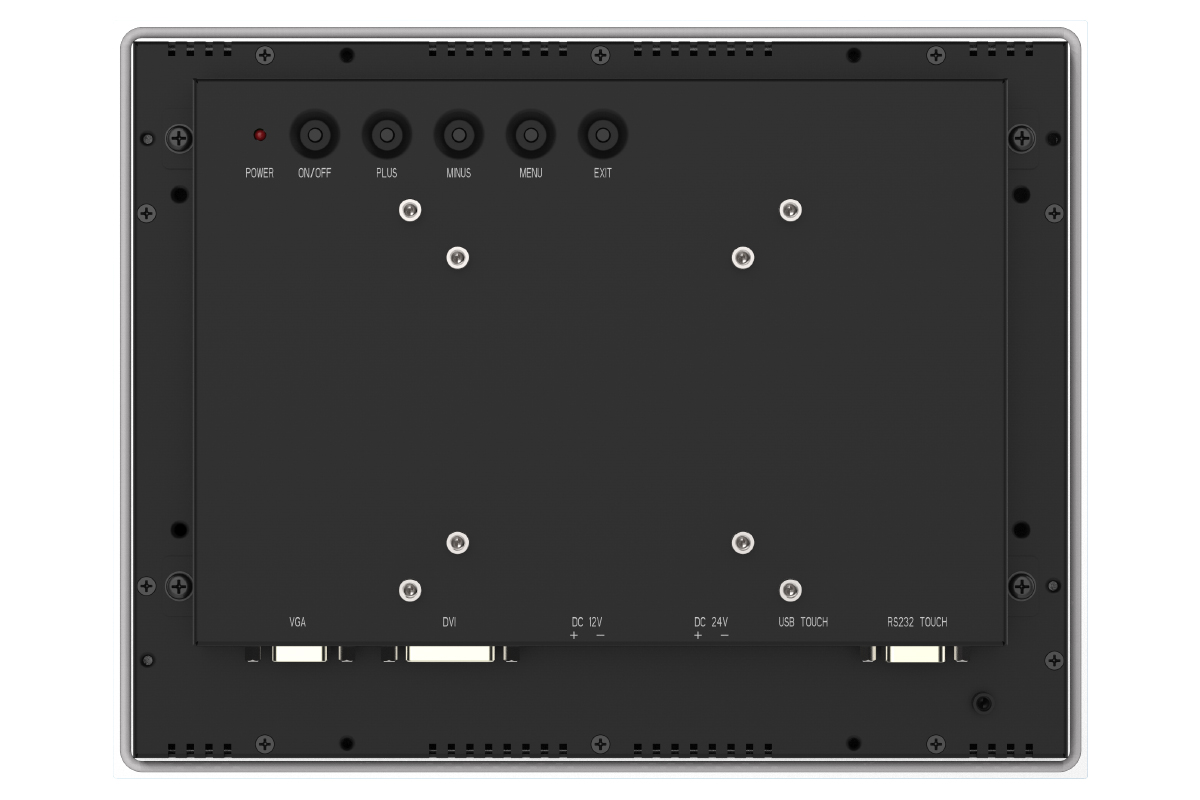

Button OSD Button in back panel
Overall Dimension 306 x 242.5 x 51mm (W*H*D)
Hole Dimension 295 x 232mm (W*H)
Structure Front Panel: Aluminum-magnesium alloy, anodic treatment
Back panel: SGCC

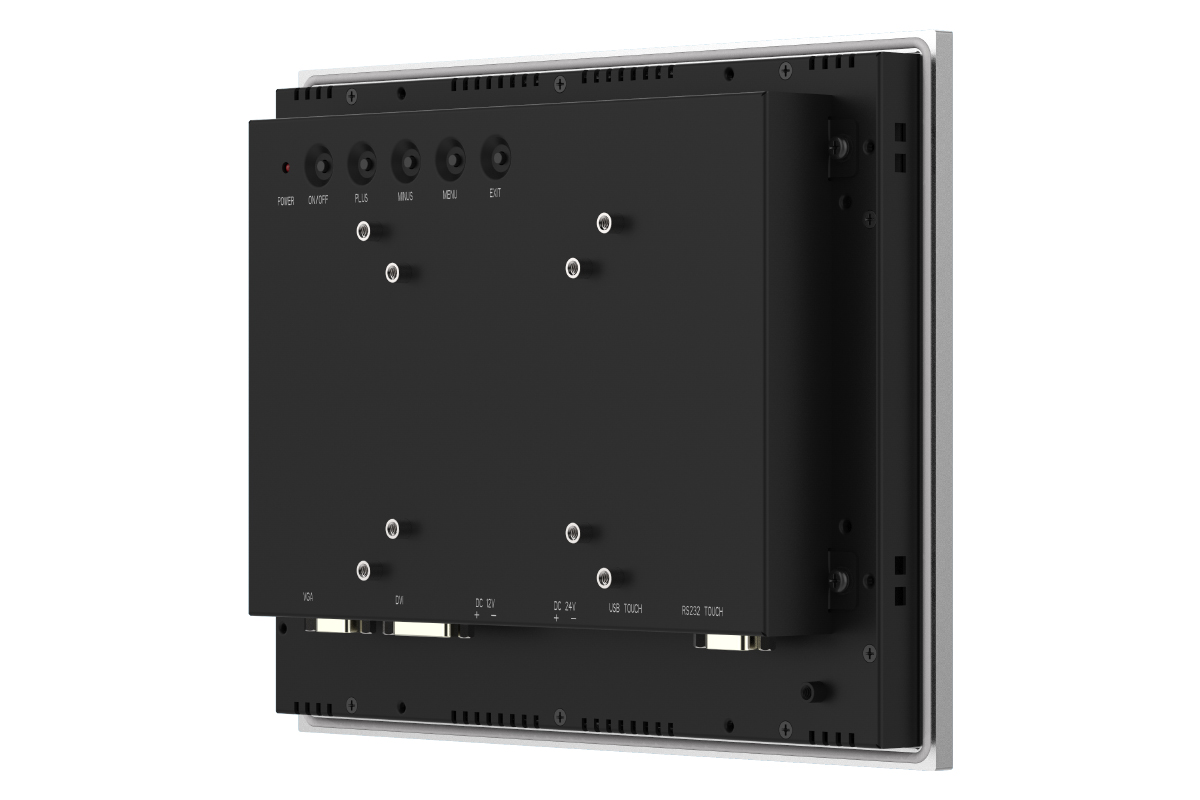

Mounting Panel Mounting, VESA 75/100

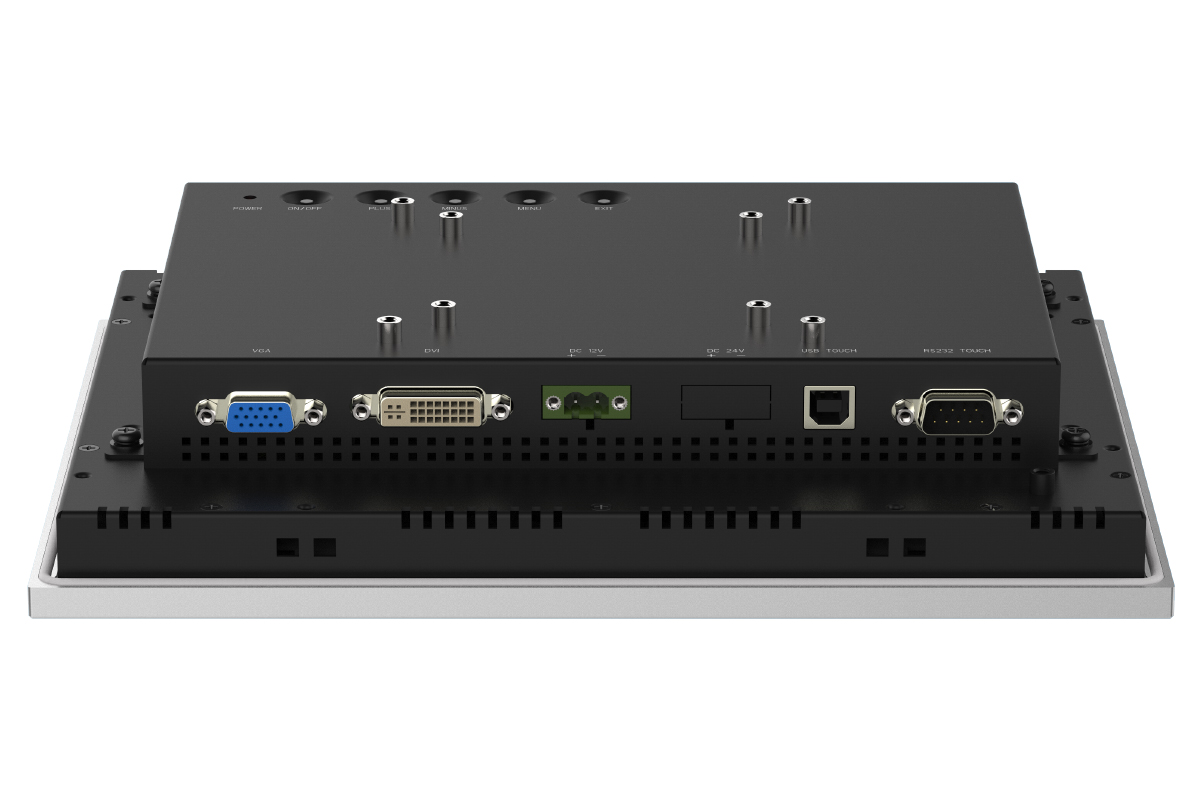

Display port 1*DVI ,1*VGA
Net weight 3 KG
LCD
Size/Type 12.1’’ TFT LCD
Resolution 1024 * 768 (XGA)
Backlit MTBF WLED, 30 000 hours
Brightness 350 (cd/m2)
Display area 245.76 x 184.32 mm (H x V)
Contrast ratio 800: 1 (Typ.)
Viewing angle 80/80/80/80 (Typ.)
TOUCH
Type Projective capacitive (P-cap.)
Interface USB (Optional RS232)
Transparency >90±3%
Touch points Multi-points, Max. up to 10 Points
Durability >100 000 000 times
Surface hardness Mohs 6H
Operating force ≤10g
Special treatment Anti-fingerprint treatment
Power & Environmental
Working temperature -20℃~+70 ℃
Storage temperature -30℃~+80 ℃
Water Proof IP65 rating in front panel
Relative humidity 10~95%@10℃（No condensation）
Vibration 50~500Hz,1.5G,0.15mm peak to peak
Shock 10G/peak（11ms sec）
Power input DC 12V or DC 24V
Power consumption Around 15W
Certification CE/ROHS/FCC
