18.5″ Capacitive Touch PCs With J1900
Model：TPC-DCM185C1
● Magnesium aluminum panel, sheet-metal box structure;
● 18.5″ widescreen LCD, LED backlit, resolution 1366*768;
● Intel Baytrail J1900 2.0Ghz, burst to 2.4Ghz processors;
● Multi-points projective capacitive touch, EETI controller;
● Fanless & slim design, front IP65 rated protection;
● Panel mount, support VESA 75/100 mount;
● DC 9~24V input, with over-current, over-voltage protection;
● 2*Intel GLAN, 2*RS232 (Optional 1*RS485), 4*USB (1*USB3.0);
● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless;
● Optional with 2 x 2w mini speaker;

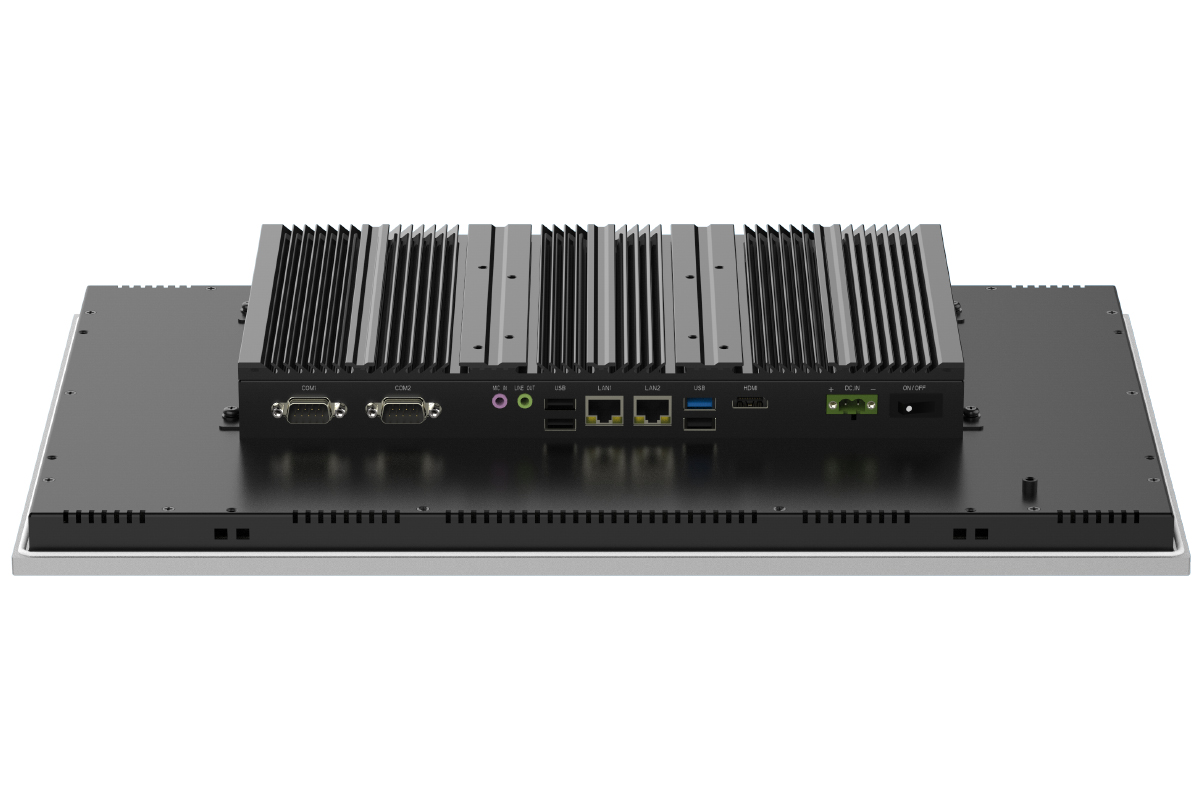

● I/O: 4x USB, 2x GLAN, 2x COM, 1x HDMI, Audio.
 |  |  |  |
Overview

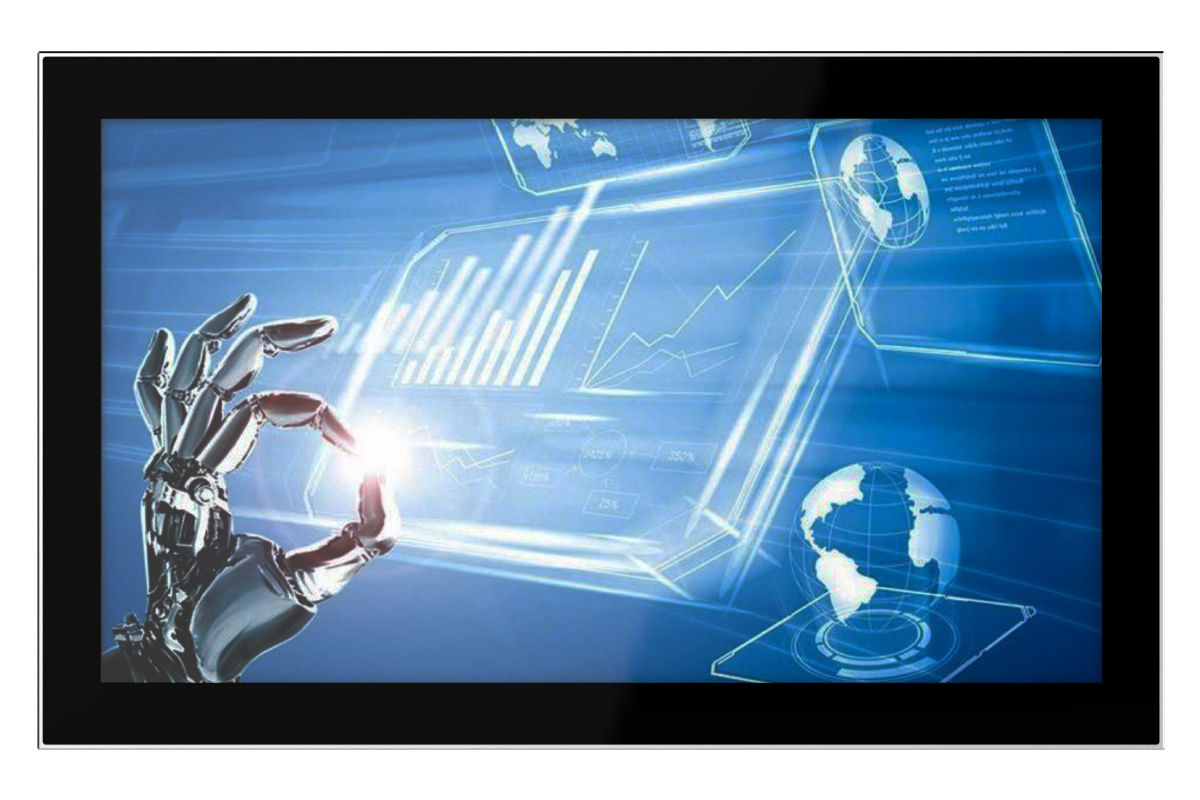

TPC-DCM185C is an excellent option for commercial and industrial applications. This PC utilizes a flat, IP65 waterproof and dust proof edge to edge glass screen.
The Capacitive Touch PC solution ships with a variety of industrial and standard consumer connectors (4 serial ports, 2 Ethernet ports,4 USB port). TPC-DCM185C series storage can support 2.5 SATA and mSATA interface, HDD or SSD. The design uses a multi-point (10- points) projective capacitive touch screen.
Dimension
